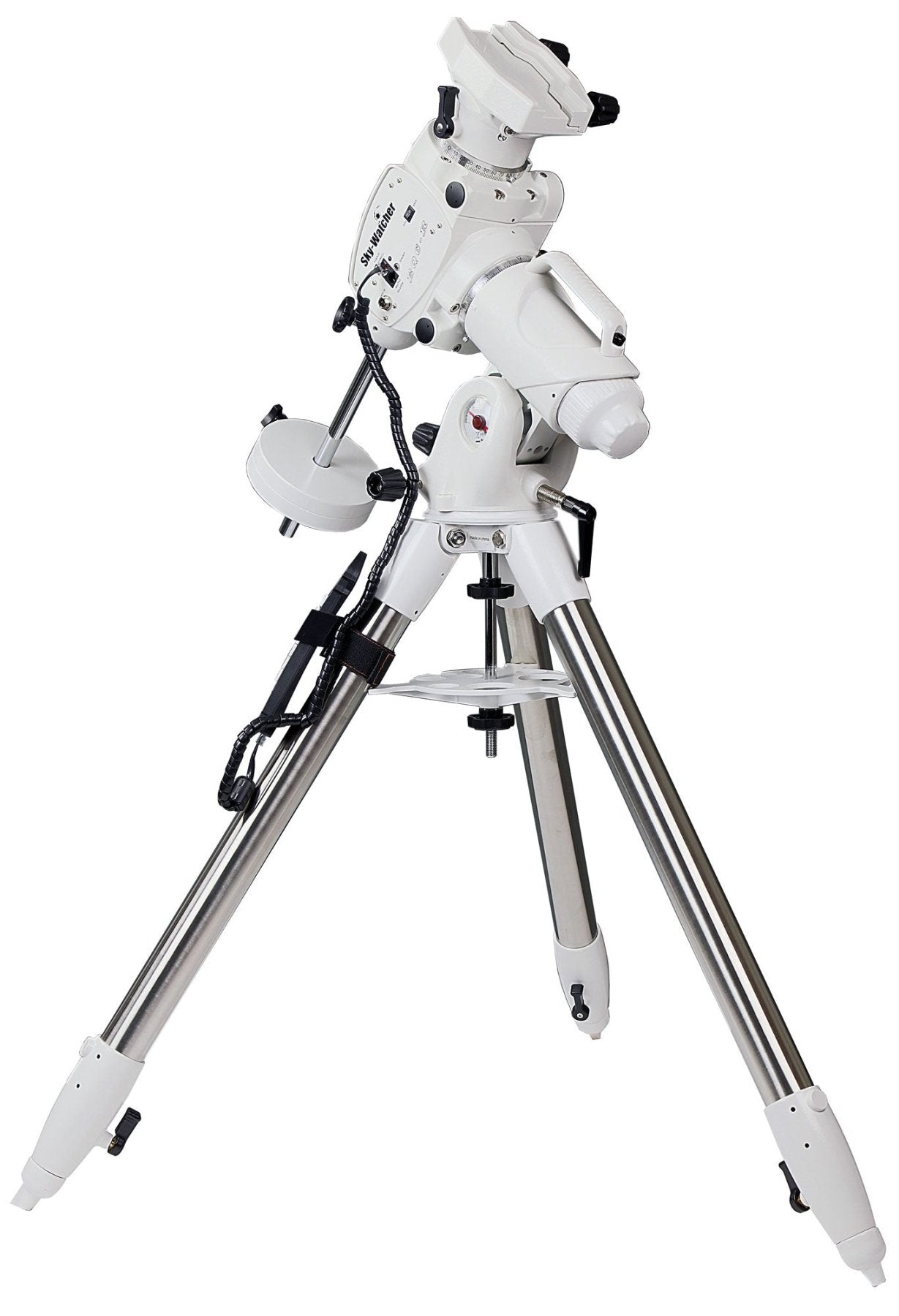

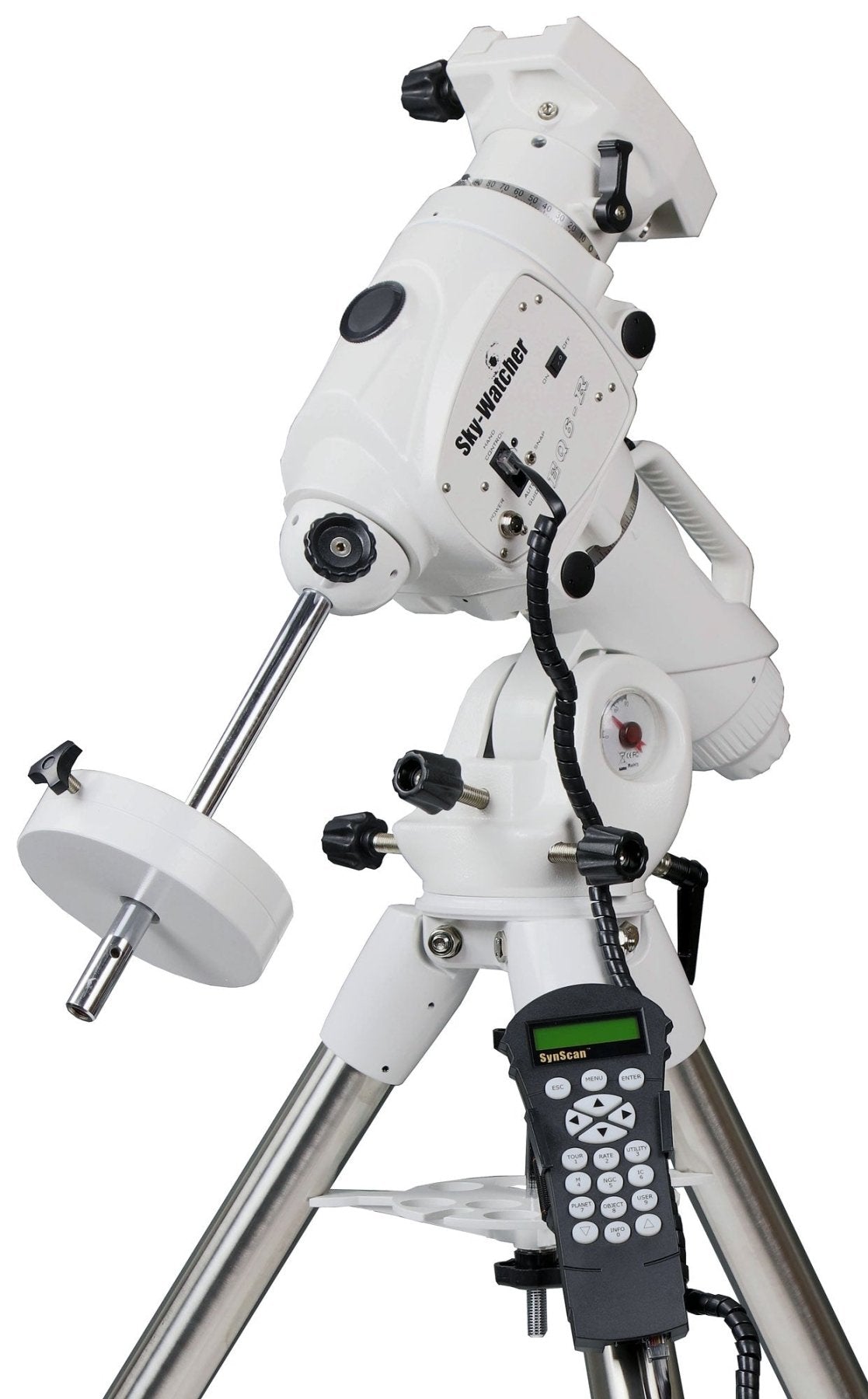

Sky-Watcher EQ6-R Pro Equatorial Mount

SKU SWEQ6-R
Available to order
Contact us for ETA
$2,999.00 - $2,999.00
$2,999.00
$2,999.00 - $2,999.00
$2,999.00
Return Policy

Please see our return policy here.

Same day shipping

If you order before 2pm we will ship your items same day.

Expert aftersales support

We fully support our products!

Minimum 2-Year Warranty.

+ extended manufacturer warranties

Aussie Owned & Stocked

Our store is Australian owned and stocked.

Sky-Watcher EQ6-R PRO SYNSCAN - A NEW LEGEND IS BORN!

The new Sky-Watcher EQ6-R PRO Synscan Computerised Go-To mounting is an exciting evolutionary progression of the continuing legend that is the EQ6 PRO. The modern optimised design of the EQ6-R PRO incorporates features that serious imagers will immediately appreciate, such as;

  • Increased Payload capacity of 20kg for Astro-Photography
  • Synchronous Belt Driven, resulting in minimal backlash - Even quieter, smoother operation and better results when guiding. Higher Torque.
  • Superior Latitude adjustment controls with greater range of latitudes possible
  • Built-in SNAP camera control port
  • PPEC worm gear and worm periodic error correction function (avoids having to constantly re-train)
  • Built-in carrying handle for convenient transportation

The supplied computerised Synscan™ hand control allows you to control the mount to point your telescope at a specific object or even tour the skies at the touch of a button. The user-friendly menu system allows automatic slewing to 42,000+ night sky objects from it's extensive database.

Supplied with;

  • EQ6-R Pro mount
  • Tripod with 2" stainless steel legs
  • Dual-Fit 45mm/75mm dovetail saddle
  • SynScan hand controller / cable
  • Counterweight Rod: 18mm diameter, length 240mm + 180mm
  • 2 x5 kg counterweights
  • Polar alignment scope
  • Autoguiding connection
  • Printed Instruction Manual

SPECIFICATIONS

  • Product Name: EQ6-R PRO Synscan
  • Mount Type: German Equatorial
  • Maximum Payload (Counterweights excluded): 20kg (for Astro-Photography)
  • Latitude Adjustment Range: 5º to 65º
  • Azimuth Adjustment Range: About ±9 º
  • Mount Weight (Tripod excluded): 17.3 kg
  • Counterweights Supplied: 2 x 5kg
  • Tripod Supplied: 2-inch stainless steel, 7.5kg Weight
  • Counterweight Rod: 18mm Diameter, Length 240mm + 180mm
  • Power Requirement: DC11~16V 4A
  • Motors: 1.8 º Hybrid Stepper Motors
  • Transmission: 180:1 Worm Drive + 48:12 Timing Belt Drive + 64 Micro-step/1.8º Stepper Motor Drive
  • Gear Ratio: 720
  • Resolution: 9216000 Counts/Rev., approx. 0.14 arc-second
  • Maximum Slewing Speed: 4.2 degrees/second
  • Tracking Rate: Sidereal rate, solar rate, lunar rate
  • Tracking Mode: Equatorial mode
  • Auto-guiding Speed: 0.125X, 0.25X, 0.5X, 0.75X, 1X
  • PEC: 100 Segments Permanent PEC (PPEC)
  • Hand Controller: SynScan™
  • Database: 42000+ Objects
  • Celestial Object Catalogue: Messier, NGC, IC, SAO, Caldwell, Double Star, Vari-able Star, Named Star, Planets
  • Pointing Accuracy: Up to 5 arc-minutes (RMS)
  • Integral SNAP camera control port
  • Dual-Fit 45mm/75mm Dovetail Saddle
  • Polar Alignment Scope

Latest Instruction Manual Latest USB Model
