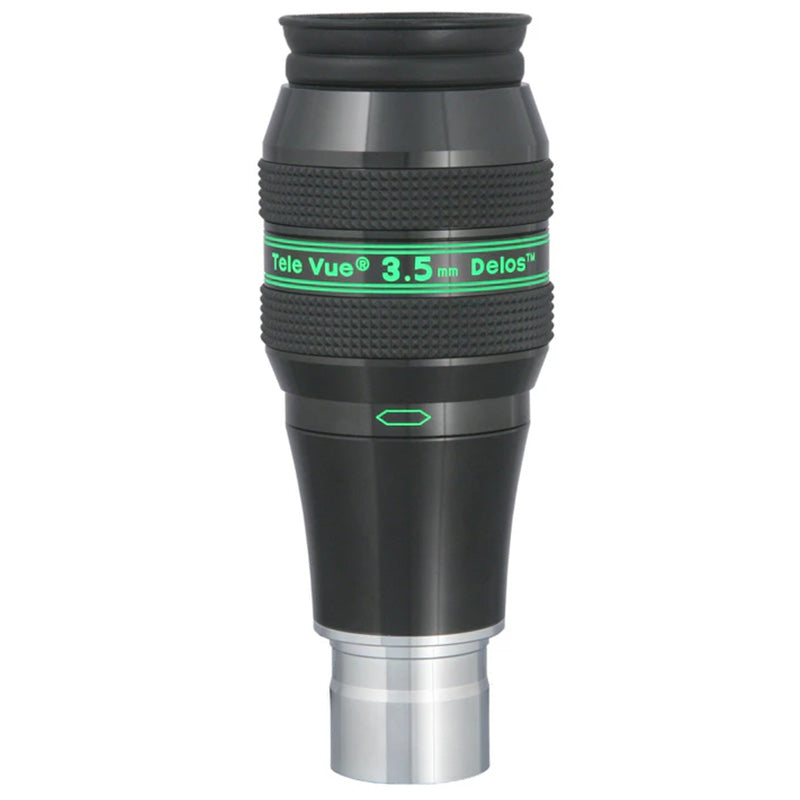

Tele Vue Delos 3.5mm Eyepiece

SKU: EDL-035
Barcode: 024143061001

$850.00

Available to order
Delivery time: Typically 3 months from order

Delivered to anywhere is Australia and New Zealand.
Orders placed before 2 PM are usually shipped the same day.

Tele Vue Delos 3.5mm Eyepiece

$850.00

$850.00

Image alt

Same day shipping

If you order before 2pm we will ship your items same day.

Image alt

Expert aftersales support

We fully support our products!

Image alt

Minimum 2-Year Warranty.

+ extended manufacturer warranties

Image alt

Aussie Owned & Stocked

Our store is Australian owned and stocked.

WANT TO KNOW MORE ABOUT THIS PRODUCT?

Let Gemini, ChatGPT or Claude help you. Click a button and ask away.

Very high power with room to observe in glasses

3.5 mmFocal length

About 343× in a 1,200 mm telescope

The Tele Vue Delos 3.5mm is for lunar detail and close doubles on steady nights. Start at 4.5mm and move up when the view stays sharp.

72°Apparent field

A 4.4 mm field stop

The apparent field looks 72° wide. In a 1,200 mm telescope the 3.5mm frames about 0.21° of sky.

20 mmEye relief

20 mm eye relief at high power

The locking eyeguard gives you a repeatable viewing position. Lower it to leave room for glasses.

Compare sky coverage at the short end of the Delos range

6mm Delos
  • Power at 1,200 mm200×
  • Apparent field72°
  • Field stop7.6 mm
  • Eye relief20 mm
4.5mm Delos
  • Power at 1,200 mm267×
  • Apparent field72°
  • Field stop5.6 mm
  • Eye relief20 mm
3.5mm Delos Selected model
  • Power at 1,200 mm343×
  • Apparent field72°
  • Field stop4.4 mm
  • Eye relief20 mm

What it fits

Eyepiece holder
Seat it directly in a 1.25-inch focuser or diagonal, or use a separate 2-to-1.25-inch reducer in a 2-inch holder.
Filters
1.25-inch eyepiece filters
Optional DIOPTRX
Fits directly (optional accessory).
Eyeguard
Start with the housing lowered for glasses. Without glasses, slide it until you see the full field. Lock the housing with the lower grip ring and use the green marks to find that height again.
Magnification
Use the Bintel FOV Calculator to see the magnification and field of view for your telescope and eyepiece.

Specifications

Optics

Focal length
3.5 mm
Apparent field of view
72°
Eye relief
20 mm
Field stop diameter
4.4 mm
Lens coatings
Fully multicoated
Lens edges
Blackened

Compatibility

Filter fit
1.25-inch eyepiece filters
Tele Vue Bino Vue
Listed for matched-pair use
Tele Vue DIOPTRX
Fits directly (optional accessory)
Tele Vue FoneMate
Compatible (optional accessory)

Fit and dimensions

Barrel diameter
1.25 inches
Eyepiece weight
Approx. 499 g
Height above seating shoulder
4.2 in
1.25-inch barrel length
1.1 in
Black body diameter
2.2 in
Field stop position
Approx. 0.25 in below seating shoulder
Parfocal group
B
Manufacturer model code
EDL-03.5
