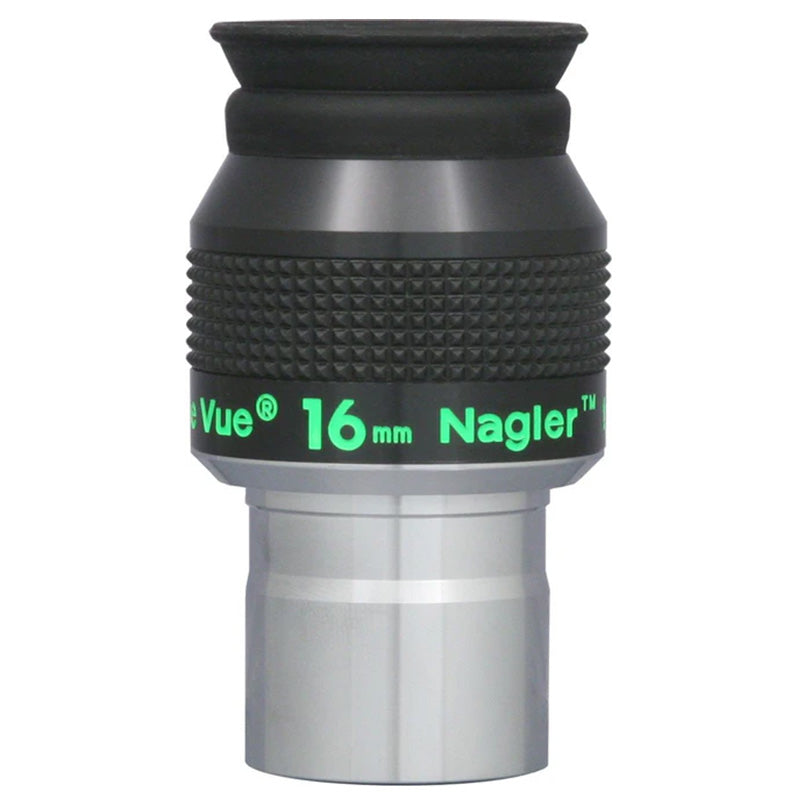

Tele Vue Nagler 16mm Type 5 Eyepiece

SKU: EN5-160
Barcode: 759270083793

$820.00

Available to order
Delivery time: Typically 3 months from order

Delivered to anywhere is Australia and New Zealand.
Orders placed before 2 PM are usually shipped the same day.

Tele Vue Nagler 16mm Type 5 Eyepiece

$820.00

$820.00

Image alt

Same day shipping

If you order before 2pm we will ship your items same day.

Image alt

Expert aftersales support

We fully support our products!

Image alt

Minimum 2-Year Warranty.

+ extended manufacturer warranties

Image alt

Aussie Owned & Stocked

Our store is Australian owned and stocked.

WANT TO KNOW MORE ABOUT THIS PRODUCT?

Let Gemini, ChatGPT or Claude help you. Click a button and ask away.

An 82° view in a compact 1.25-inch eyepiece

16 mmFocal length

Frame clusters at 75×

The Tele Vue Nagler 16mm Type 5 gives 75× in a 1,200 mm telescope. It suits compact clusters or a first look at an extended object before moving in.

82°Apparent field

About 1.06° of sky at 1,200 mm

Its 22.1 mm field stop covers more sky than the 13mm Type 6 in the same telescope. Both give an 82° apparent field.

10 mmEye relief

A close viewing position

At 10 mm of eye relief your eye sits close to the lens. Glasses can make the field edge harder to see.

Compare three 1.25-inch wide-field options

18.2mm DeLite
  • Apparent field62°
  • Field stop19.1 mm
  • Eye relief20 mm
16mm Nagler Type 5 Selected model
  • Apparent field82°
  • Field stop22.1 mm
  • Eye relief10 mm
13mm Nagler Type 6
  • Apparent field82°
  • Field stop17.6 mm
  • Eye relief12 mm

What it fits

Eyepiece holder
Seat it directly in a 1.25-inch focuser or diagonal, or use a separate 2-to-1.25-inch reducer in a 2-inch holder.
Filters
1.25-inch eyepiece filters
Magnification
Use the Bintel FOV Calculator to see the magnification and field of view for your telescope and eyepiece.

Specifications

Optics

Focal length
16 mm
Apparent field of view
82°
Eye relief
10 mm
Field stop diameter
22.1 mm
Optical elements / groups
6 / 4
Lens coatings
Fully multicoated
Lens edges
Blackened

Compatibility

Filter fit
1.25-inch eyepiece filters
Tele Vue Bino Vue
Listed for matched-pair use
Tele Vue DIOPTRX
Listed as incompatible

Fit and dimensions

Barrel diameter
1.25 inches
Eyepiece weight
Approx. 201 g
Height above seating shoulder
1.5 in
1.25-inch barrel length
1.2 in
Black body diameter
1.7 in
Field stop position
Approx. 0.28 in below seating shoulder
Parfocal group
B
Manufacturer model code
EN5-16.0
