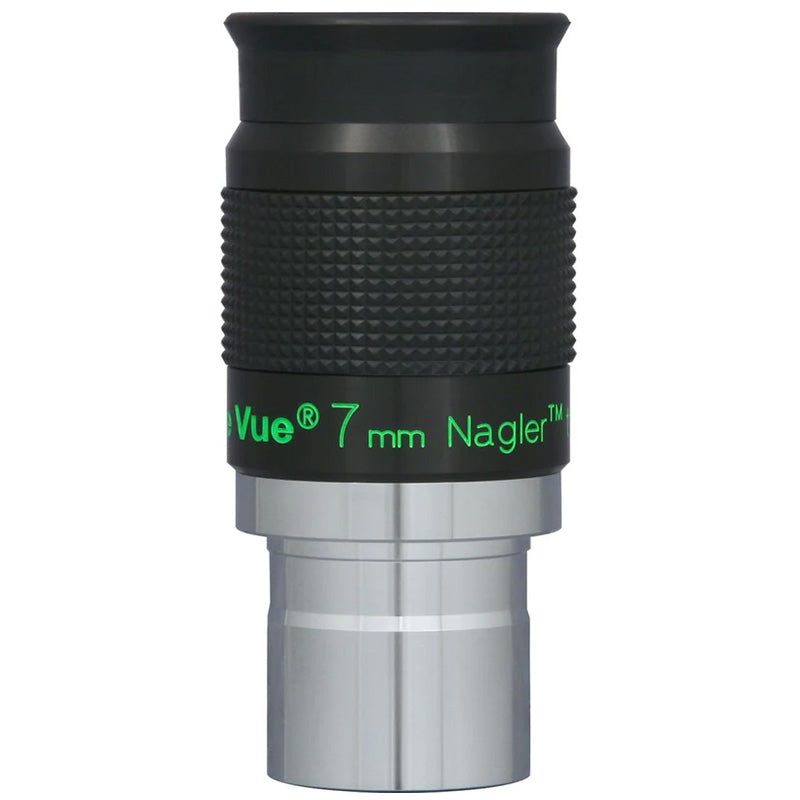

Tele Vue Nagler 7mm Type 6 Eyepiece

SKU: EN6-070
Barcode: 759270083823

$750.00

Available to order
Delivery time: Typically 3 months from order

Delivered to anywhere is Australia and New Zealand.
Orders placed before 2 PM are usually shipped the same day.

Tele Vue Nagler 7mm Type 6 Eyepiece

$750.00

$750.00

Image alt

Same day shipping

If you order before 2pm we will ship your items same day.

Image alt

Expert aftersales support

We fully support our products!

Image alt

Minimum 2-Year Warranty.

+ extended manufacturer warranties

Image alt

Aussie Owned & Stocked

Our store is Australian owned and stocked.

WANT TO KNOW MORE ABOUT THIS PRODUCT?

Let Gemini, ChatGPT or Claude help you. Click a button and ask away.

An 82° apparent field at 7mm

7 mmFocal length

Step up from 9mm when the image holds steady

The Tele Vue Nagler 7mm Type 6 gives about 171× in a 1,200 mm telescope. Try it for lunar and planetary detail when seeing supports that power.

82°Apparent field

About 0.46° of sky at 1,200 mm

The 9.7 mm field stop shows a wider patch of sky than the 5mm Type 6 in the same scope. That gives a target more room to drift on an untracked mount.

12 mmEye relief

A close viewing position

Your eye sits fairly close to the lens. Glasses can limit how much of the apparent field you see.

Compare the 9mm, 7mm and 5mm Naglers

9mm Nagler Type 6
  • Apparent field82°
  • Field stop12.4 mm
  • Eye relief12 mm
7mm Nagler Type 6 Selected model
  • Apparent field82°
  • Field stop9.7 mm
  • Eye relief12 mm
5mm Nagler Type 6
  • Apparent field82°
  • Field stop7 mm
  • Eye relief12 mm

What it fits

Eyepiece holder
Seat it directly in a 1.25-inch focuser or diagonal, or use a separate 2-to-1.25-inch reducer in a 2-inch holder.
Filters
1.25-inch eyepiece filters
Optional DIOPTRX
Requires the optional DNA-6000 adapter.
Magnification
Use the Bintel FOV Calculator to see the magnification and field of view for your telescope and eyepiece.

Specifications

Optics

Focal length
7 mm
Apparent field of view
82°
Eye relief
12 mm
Field stop diameter
9.7 mm
Optical elements / groups
7 / 4
Lens coatings
Fully multicoated
Lens edges
Blackened

Compatibility

Filter fit
1.25-inch eyepiece filters
Tele Vue Bino Vue
Listed for matched-pair use
Tele Vue DIOPTRX
Requires the optional DNA-6000 adapter

Fit and dimensions

Barrel diameter
1.25 inches
Eyepiece weight
Approx. 227 g
Height above seating shoulder
2.2 in
1.25-inch barrel length
1.2 in
Black body diameter
1.6 in
Field stop position
Approx. 0.25 in below seating shoulder
Parfocal group
B
Manufacturer model code
EN6-07.0
