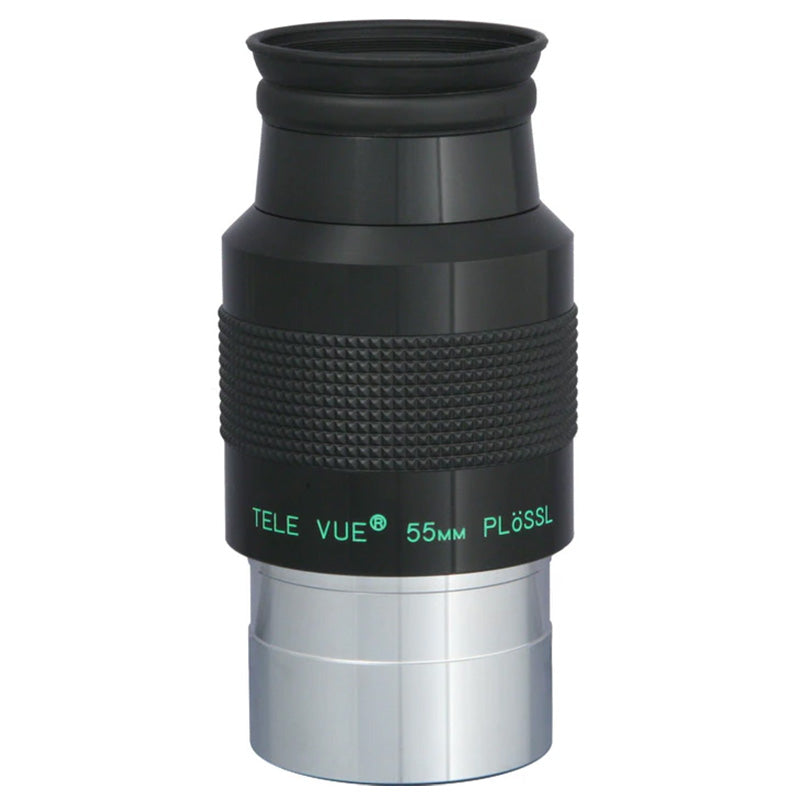

Tele Vue Plossl 55mm Eyepiece

SKU: EPL-550
Barcode: 410000033647

$570.00

Available to order
Delivery time: Typically 3 months from order

Delivered to anywhere is Australia and New Zealand.
Orders placed before 2 PM are usually shipped the same day.

Tele Vue Plossl 55mm Eyepiece

$570.00

$570.00

Image alt

Same day shipping

If you order before 2pm we will ship your items same day.

Image alt

Expert aftersales support

We fully support our products!

Image alt

Minimum 2-Year Warranty.

+ extended manufacturer warranties

Image alt

Aussie Owned & Stocked

Our store is Australian owned and stocked.

WANT TO KNOW MORE ABOUT THIS PRODUCT?

Let Gemini, ChatGPT or Claude help you. Click a button and ask away.

A 46 mm field stop for low-power 2-inch views

55 mmFocal length

Take in the field around large targets

The Tele Vue Plössl 55mm gives about 22× in a 1,200 mm telescope. It suits low-power finding and framing extended objects.

50°Apparent field

About 2.20° of sky at 1,200 mm

A 46 mm field stop covers the same approximate patch of sky as the 41mm Panoptic in the same telescope. The 55mm gives lower power and a 50° apparent field.

38 mmEye relief

38 mm of eye relief

The long working distance makes eye position important. Set the adjustable eyeguard at the height that keeps the full field visible.

5.5 mm
Exit pupil at f/10

What the 55mm does at f/10

The same eyepiece gives an 11 mm exit pupil at f/5. If the beam is wider than your dark-adapted pupil, some of it misses your eye.

Compare three low-power 2-inch eyepieces

55mm Plössl Selected model
  • Apparent field50°
  • Field stop46 mm
  • Eye relief38 mm
41mm Panoptic
  • Apparent field68°
  • Field stop46 mm
  • Eye relief27 mm
35mm Panoptic
  • Apparent field68°
  • Field stop38.7 mm
  • Eye relief24 mm

Good to know

01

Allow extra outward focus

The field stop sits near the bottom of the barrel, so the focuser usually needs to move farther out. If it runs out of travel, Tele Vue recommends the optional EBX-2120 2-inch barrel extender.

02

Set the eyeguard height

Adjust the upper black housing until you can hold your eye at the right distance. The concealed lock ring holds the chosen position.

03

Leave the chrome barrel attached

The adjustable eyeguard and the chrome lens barrel are separate assemblies. Keep the chrome barrel in place.

What it fits

Eyepiece holder
Seat it directly in a 2-inch focuser or diagonal.
Filters
2-inch eyepiece filters
Optional DIOPTRX
The Tele Vue DIOPTRX astigmatism corrector fits directly.
Magnification
Use the Bintel FOV Calculator to see the magnification and field of view for your telescope and eyepiece.

Specifications

Optics

Focal length
55 mm
Apparent field of view
50°
Eye relief
38 mm
Field stop diameter
46 mm
Optical elements / groups
4 / 2
Lens coatings
Fully multicoated
Lens edges
Blackened

Compatibility

Filter fit
2-inch eyepiece filters
Tele Vue DIOPTRX
Fits directly (optional accessory)

Fit and dimensions

Barrel diameter
2 inches
Eyepiece weight
Approx. 513 g
Height above seating shoulder
3 in
2-inch barrel length
1.4 in
Black body diameter
2.3 in
Field stop position
Approx. 1.16 in below seating shoulder
Manufacturer model code
EPL-55.0
