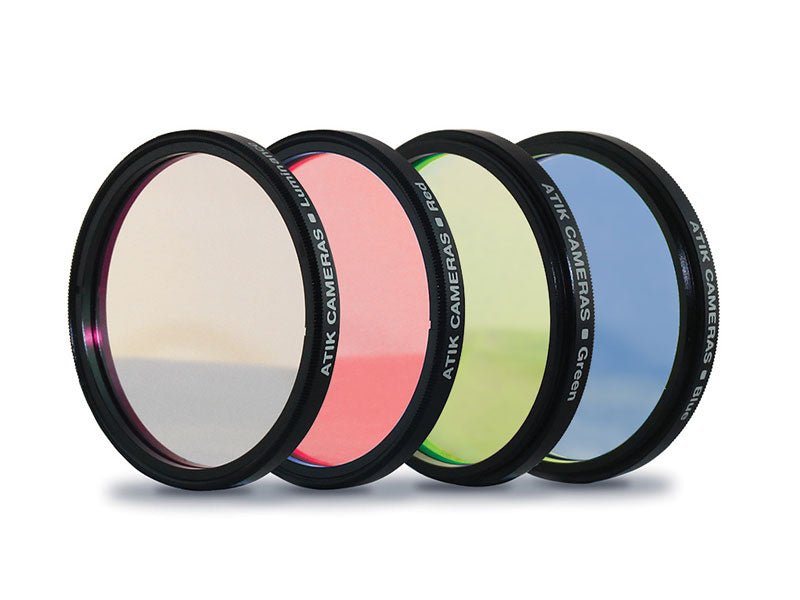

The ATIK LRGB 36mm set consists of Luminance, Red, Green and blue filters, that have been designed for CCD cameras to image deep sky objects, galaxies and stars in their natural colour. Take advantage of our special offer. Get 50% off any filter set (or both filter sets), when you buy any Atik mono camera (with the exception of the Atik GP).
If a natural colour representation is what you want from you deep-sky imaging, an LRGB filter set should be your first choice. With OIII emission overlapping on the blue and green filters to allow high efficiency and natural colour imaging of all deep-sky objects. The gap between green and red filters serves to block out the light pollution line at 589nm and improves the colour of your images.
ATIK LRGB 36mm Set Specifications
Transmission: Average 95%
Size: 36mm
Coating Wavelength: 300-1050nm
Transmitted Wavefront RMS: λ/4
Parallelism (arcsec): 30s
| Filter | Transmission range | Transmission in Band | Transmission out of band |
| Luminance | 410-680nm | Average >95%, Minimum >90% | Maximum <1% Average <0.5% |
| Red | 600-680nm | Average >95%, Minimum >90% | Maximum <1% Average <0.5% |
| Green | 500-550nm | Average >95%, Minimum >90% | Maximum <1% Average <0.5% |
| Blue | 410-500nm | Average >95%, Minimum >90% | Maximum <1% Average <0.5% |
SKU: ATK0163
