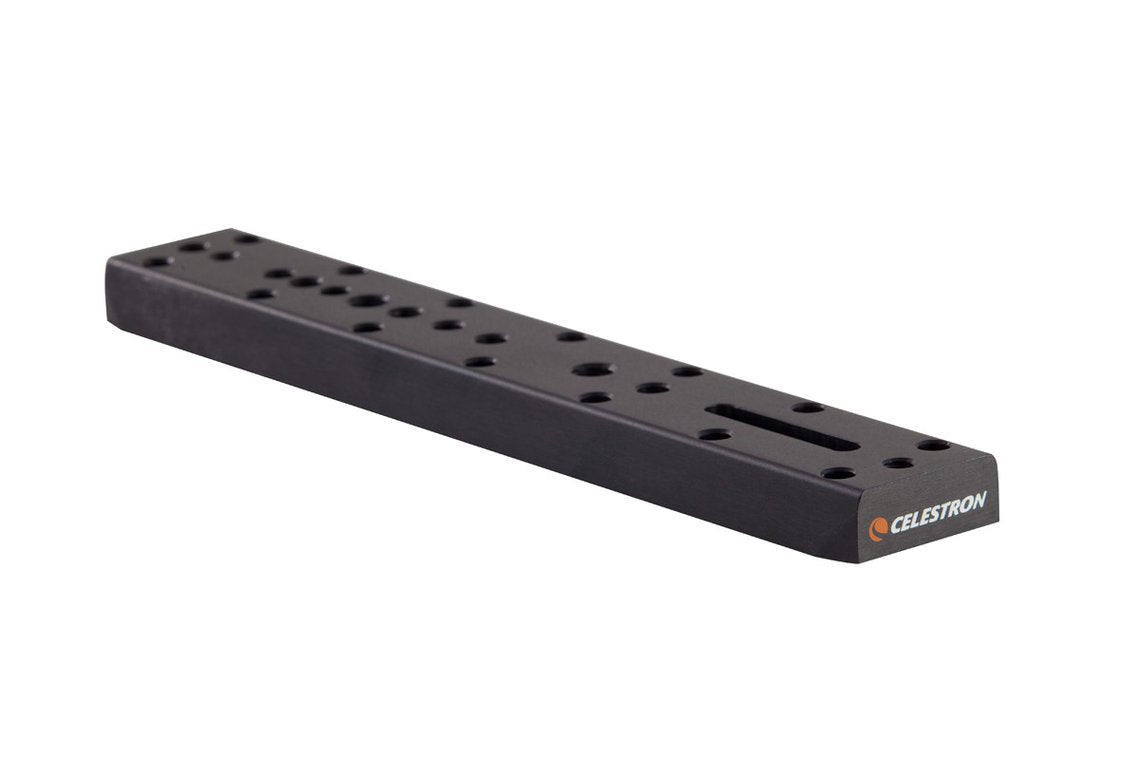

• Attach a variety of accessories to your Advanced CG-5 or Advanced VX mount with this Universal Mounting Plate
• Several different mounting holes to choose from to mount rings, spotting scopes, cameras, etc
• Approximately 250mm long

Note: No Hardware screws included

Losmandy DM14 Dovetail Plate

The Dovetail Plates are the heart of the Losmandy Secondary System. 0.5" x 4.0" x length of the tube assembly.

Dovetail plates may be mounted to the top and bottom of tube assembly for mounting of all D series accessories, making it possible to use both sides of tube for equipment.

The dovetail plates, like all accessories in the Losmandy line, are machined for lightness and rigidity from aluminium stock, then black anodized for a tough, corrosion free surface.

Meade dovetail plate for 14", bolts to existing holes.

Includes curved blocks for precision fit to the tube assembly. Stainless steel hardware included.

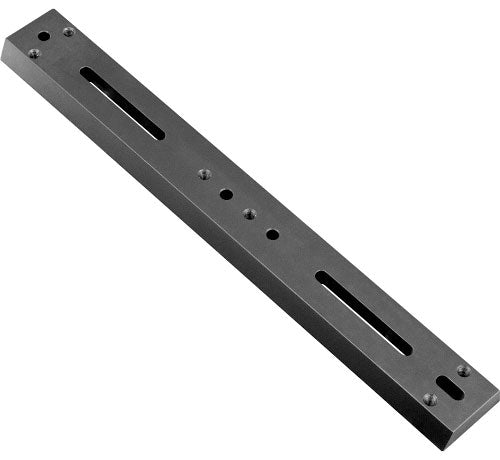

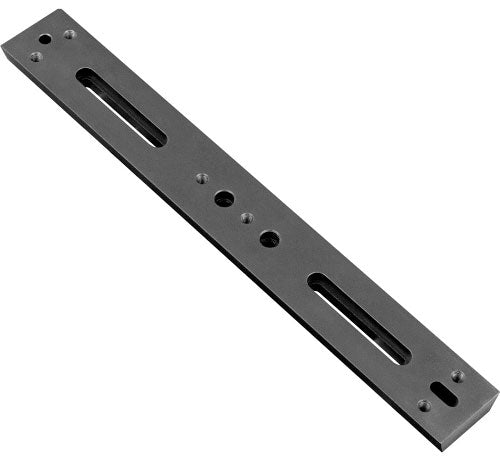

Orion narrow dovetail plate (Vixen Style) is made of extruded, black anodized aluminum. With several holes and two long slots, this versatile plate is ideal for mounting telescope and guide scope tube rings, cameras, finder scopes, and other accessories.

Near the center of the plate are two counterbored through holes and two M6x1 threaded holes. Two long slots are also counterbored underneath so that the heads of standard socket head cap screws are recessed under the bottom surface of the plate.

Both the through holes and slots can accommodate 1/4"-20 socket head cap screws and some smaller sizes. The slots make it easy to accommodate the needed spacing between two tube rings for different telescope and guide scope configurations.

Two holes on each end of the plate have M6x1 threads also.

With the Orion narrow dovetail plate, you'll have a secure connection and perfect placement ? no matter what tube you're using to explore the universe!

Tele Vue Adapter Vixen/Tele Vue
Allows telescopes with Tele Vue Ring Mounts or Tube Rings to be swapped between Tele Vue mounts and mounts with Vixen-style dovetail channels (used on Vixen Sphinx, GP and PORTA series mounts) without removal of the adapter. Also attaches to Coronado PST and Solarmax 40 telescopes.

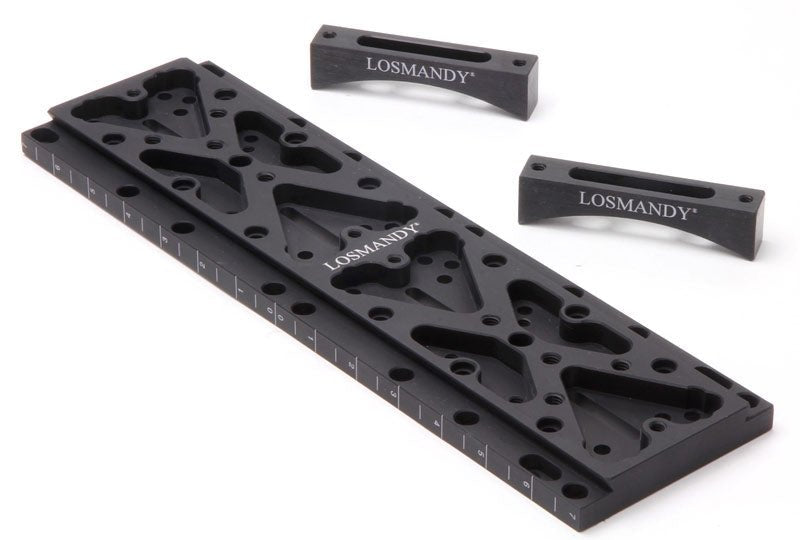

Losmandy Dovetail Bar to suit Celeston 9.25 Standard and Edge Version.

Comes with mounting brackets.

Losmandy DMM14 Dovetail Plate (formally know as Losmandy DMM)

Losmandy DMM Dovetails allow you to mount secondary accessories to you mount. Originally are designed for use with the DSBS (now DVSBS) so you could mount accessories on one side whilst having a scope on the other side.

Precision machined D Style dovetails on either side it can fit into any mount that has a D style saddle.

The dovetail plates, like all accessories in the Losmandy line, are machined for lightness and rigidity from aluminium stock, then black anodized for a tough, corrosion free surface.

Weight: 2.6 lbs.
Length: 14"
Thickness: 0.75"

Part #: DMM14

The Losmandy VCB11 curved block set is necessary if you wish to mount the Losmandy #VSCT17 dovetail bar to Celestron 11” scopes and OTA's.

One of the blocks mounts on the rear cell and is fixed with two socket head machine screws (supplied) in the holes spaced 1.75" apart. The hole in the middle should be threaded on this block.

The second block is mounted through the dovetail bar into the front cell , again using the socket head machine screwed (supplied). The centre hole in this block is larger and not threaded.

Made of machined aluminium and anodised black for long life. Comes complete with stainless hardware .

suits VSCT 17

This V-Style Dove tail bar is designed for DSLR cameras to  attach your DSLR to a dedicated telescope mount.

Attach the dovetail bar to the DSLR camera body using the supplied 1/4” or 3/8" inch screws.

Like all tripods or camera mounting systems, do not over-tighten the screw to avoid possible damage to the camera body.

Losmandy V Male to Male Plate in a new design by Losmandy.

Less weight, better rigidity.

Anodised for long life.

Etched for precise positioning

All four sides fit into a V-style saddle.

Works in conjunction with DVSBS or VSBS. Allows DVA adapters.

Meade dovetail plate for 16" F8, bolts to existing holes. Wt. 5.5 lbs. Length 24" HS 23.00, Ht. top of tube to top of dovetail plate 1.45" Thickness .75"

Losmandy DMM7 Dovetail Plate - Male to Male 7 inch

Losmandy DMM7 Dovetail Plate (formally known as the DMMS)

This dovetail plate allows you to mount secondary equipment (like a guidescope ) when used on the Losmandy DVSBS

Will fit all D style saddles

The dovetail plates, like all accessories in the Losmandy line, are machined for lightness and rigidity from aluminium stock, then black anodized for a tough, corrosion free surface. Male to male dovetail plate.

For use of secondary equipment on equatorial mount and DSBS.

Weight: 370 grams

Length: 178mm

Width: 102mm

Thickness: 19mm

Part #: DMM7

Vixen's Industry Standard attachment system

The Universal Dovetail Plate slips into any mount with dovetail attachment. Use to attach your telescope with Vixen Tube Rings or third party rings with 1/4"-20 threaded holes. Other devices such as a camera can also be attached. This dovetail tube plate is standard for many mounts and optical tubes.

Specifcations

• Size
  190mm x 43.5mm x 20mm
• Weight
  160g / 5.64oz

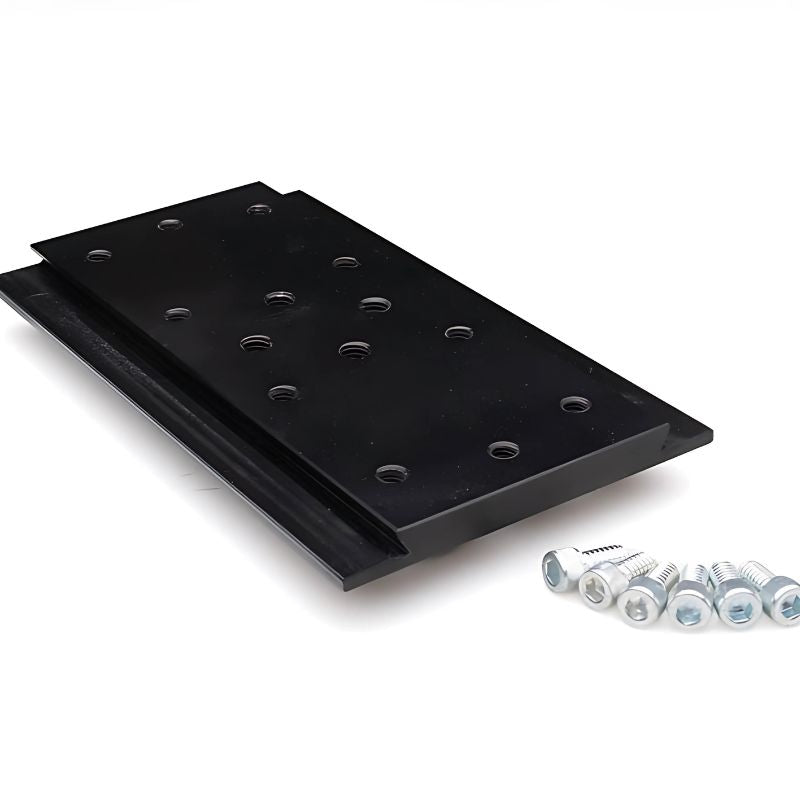

The DMM is a 7" adapter plate that mates to any of the Losmandy DUP dovetail plates to create a male-to-male dovetail.

The Multi-OTA Mounting Kit includes:

• Paramount ME II Versa-Plate Spacers
• Paramount ME II Large Dovetail Rails
• One Side-by-Side Adaptor plate

When the Paramount ME II Versa-Plate is rotated to the wide orientation, these components can be used to attach two or more ring-mounted optical tube assemblies.
