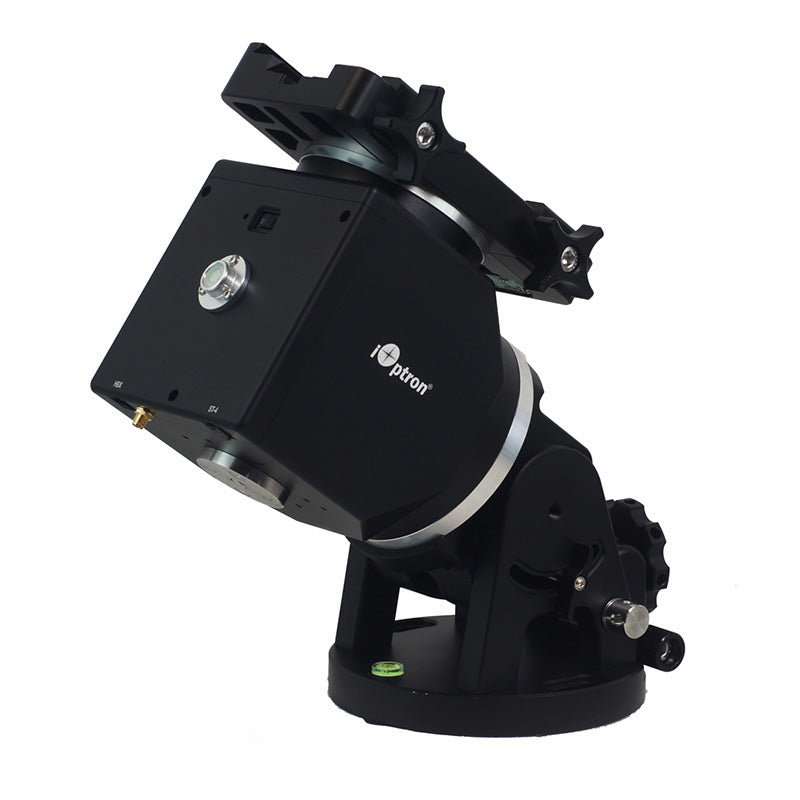

Introducing the new members of iOptron strain wave gear mount family - AZ/EQ dual mount HAE29 and HAE29EC! These light weight, high payload little titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at 8 lbs with a payload capability 29.7lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE29 brings this vision to reality.

Utilizing state of the art strain wave gear technology for the both RA and DEC movement, the HAE29s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction brake and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

An HAE29 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.

Features

• Advanced strain wave gear system technology
• Payload capacity of 13.5 kg (29.7 lbs) with the mount weight of 3.7 kg (8.15 lbs, include dovetail saddle)
• CNC machined
• Unique friction brake on both RA and DEC to safely stop movement during a planned or unplanned power interruption
• 360 second gear period
• Go2Nova® hand controller with ~212,000 object database
• iPolar electronic polar scope for easy and accurate polar alignment
• Customer cable management system ready
• Dual saddle (Vixen and Losmandy-D styles)
• Built in zero position search and locator
• Power down position and location memory
• Integrated ST-4 autoguiding port
• Built-in Wi-Fi (via hand controller)
• USB port for firmware upgrade and computer control
• Carrying case
• Two year warranty

Specifications

Introducing the new members of iOptron strain wave gear mount family - AZ/EQ dual mount HAE43 and HAE43EC! These light weight, compact, medium payload titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at less than 13lbs with a payload capability 44lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE43 brings this vision to reality.

Utilizing state of the art strain wave gear technology for the both RA and DEC movement, the HAE43s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction brake and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

An HAE43 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.

Features

• Advanced strain wave gear system technology
• Payload capacity of 20 kg (44 lbs) with the mount weight of 5.8 kg (12.8 lbs, include dovetail saddle)
• CNC machined
• Unique friction brake on both RA and DEC to safely stop movement during a planned or unplanned power interruption
• 270 second gear period
• Go2Nova® hand controller with ~212,000 object database
• iPolar electronic polar scope for easy and accurate polar alignment
• Customer cable management system ready
• Dual saddle (Vixen and Losmandy-D styles)
• Built in zero position search and locator
• Power down position and location memory
• Integrated ST-4 autoguiding port
• Built-in Wi-Fi (via hand controller)
• USB port for firmware upgrade and computer control
• Aluminum carrying case
• Two year warranty

* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.

iOptron HEM44 Mount Head gives you Freedom from cumbersome counterweights and shaft!

Introducing the HEM44 Mount Head iOptron’s latest revolutionary hybrid strain wave drive mounts. These light weight, compact, medium payload titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at 6.2kg with a payload capability 20kg, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HEM44 Mount Head brings this vision to reality.

Utilizing state of the art strain wave drive technology for the RA movement in tandem with backlash-free DEC worm/belt drive design, the HEM44s deliver unparalleled weight to payload efficiency. It's black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction break and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

A HEM44 Mount Head can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.

HEM44 mounts with low latitude range (0~22 degree) are available via special order.

More Information on iOptron HEM mounts

HEM44 Mount Head Features

• Advanced strain wave drive technology
• Payload capacity of 20 kg (44 lbs) with the mount weight of 6.2 kg (13.65 lbs)
• CNC machined
• Unique friction brake to safely stop movement during a planned or unplanned power interruption
• 270 second gear period
• Permanent periodic error correction (PPEC)
• Go2Nova® hand controller with ~212,000 object database
• Cable management system, no hanging exterior cables to moving parts
• Dual saddle (Vixen and Losmandy-D styles)
• Built in zero position search and locator
• Power down position and location memory
• Integrated ST-4 autoguiding port
• Built-in Wi-Fi (via hand controller)
• USB port for firmware upgrade and computer control
• Soft carrying case
• Two year warranty
• Tripod Not included

HEM44 Mount Head Technical Specifications

* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.

SKU: H442

You might also like these accessories ...

The iOptron® CEM40 with LiteRoc is the next generation of center-balanced equatorial mounts. This mount is incredibly eye-pleasing, and its beauty is found in more than its appearance. The functionality of the mount is superb. Weighing in at only 17.4lbs., this mount can support a payload of up to 40lbs.! That's incredible!

Innovative iOptron Technology
Make way for an innovative mount! This mount has an integrated electronic polar finder scope known as the iPolar. This tool ensures the accurate alignment of a telescope, even when the pole star is obscured. There are large levers on the quick-lock drive engagement system; these large levers make it easy to snap the gears into place.

This iOptron CEM40 with LiteRoc has a dual saddle that accommodates Losmandy and Vixen-style dovetail plates. It also uses iOptron's ultra-quiet, low-power consumption stepper motor drive system, aiding the mount in providing precise tracking.

Computerized Mount Features
The iOptron CEM40 mount uses the Go2Nova® 8407 hand controller to navigate the night sky. This incredible technology helps observers find celestial objects with the aid of the mount's 212,000+ object database! For those looking for a telescope that has the capability of tracking and finding beautiful night sky objects, this mount is a must have tool.

With the included tripod, 11lbs. counterweight, and the mount's computerized technology, observers are just an OTA away from a spectacular viewing experience!

(CEM40 with Literoc uses #8027 counterweight)

Features

• Unique design, Center-Balanced equatorial mount (CEM) for maximum payload and minimum mount weight
• Idea for both visual observation and astrophotography
• Maximum payload of 40 lbs (18 kg) with the mount weight of only 17.4 lbs (7.9 kg)
• All metal, CNC machined with red/black anodized
• Easy to use quick-lock gear clutches
• Integrated iPolar^TM electronic polar finder
• Low periodic error (< ± 7 arc seconds)
• Permanent periodic error correction (PPEC)
• Precision stepper motor for precise GOTO and accurate tracking
• Go2Nova® 8407+ controller with Advanced GOTONOVA® GOTO Technology with built-in heater
• Integrated ST-4 autoguiding port
• 32-channel Global Positioning System (GPS)
• USB communication port
• Cable management system
• 6" Losmandy D & Vixen dual dovetail saddle
• LiteRoc 1.75 inch heavy-duty stainless steel tripod (7kg)
• Optional WiFi for mount control via SmartPhone/Tablet/Computer

Supplied with an American power supply from factory

The iOptron® CEM40 mount is the next generation of center-balanced equatorial mounts. This mount is incredibly eye-pleasing, and its beauty is found in more than its appearance. The functionality of the mount is superb. Weighing in at only 17.4lbs., this mount can support a payload of up to 40lbs.! That's incredible!

Innovative iOptron Technology
Make way for an innovative mount! This mount has an integrated electronic polar finder scope known as the iPolar. This tool ensures the accurate alignment of a telescope, even when the pole star is obscured. There are large levers on the quick-lock drive engagement system; these large levers make it easy to snap the gears into place.

This iOptron CEM40G mount has a dual saddle that accommodates Losmandy and Vixen-style dovetail plates. The CEM40 also uses iOptron's ultra-quiet, low-power consumption stepper motor drive system, aiding the mount in providing precise tracking.

Computerized Mount Features
The iOptron CEM40 mount uses the Go2Nova® 8407 hand controller to navigate the night sky. This incredible technology helps observers find celestial objects with the aid of the mount's 212,000+ object database! For those looking for a telescope that has the capability of tracking and finding beautiful night sky objects, this mount is a must have tool.

With the included tripod, 11lbs counterweight, and the mount's computerized technology, observers are just an OTA away from a spectacular viewing experience!

(This mount uses #8027 counterweight)

Features

• Unique design, Center-Balanced equatorial mount (CEM) for maximum payload and minimum mount weight
• Idea for both visual observation and astrophotography
• Maximum payload of 40 lbs (18 kg) with the mount weight of only 17.4 lbs (7.9 kg)
• All metal, CNC machined with red/black anodized
• Easy to use quick-lock gear clutches
• Integrated iPolar^TM electronic polar finder
• Low periodic error (< ± 7 arc seconds)
• Permanent periodic error correction (PPEC)
• Precision stepper motor for precise GOTO and accurate tracking
• Go2Nova® 8407+ controller with Advanced GOTONOVA® GOTO Technology with built-in heater
• Integrated ST-4 autoguiding port
• 32-channel Global Positioning System (GPS)
• USB communication port
• Cable management system
• 6" Losmandy D & Vixen dual dovetail saddle
• Standard 1.5 inch heavy-duty stainless steel tripod (5kg)
• Optional WiFi for mount control via SmartPhone/Tablet/Computer

Supplied with an American power supply from factory

Introducing the HEM27 and the HEM27EC, iOptron’s revolutionary hybrid harmonic drive mounts. These light weight, high payload tiny titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at 3.7KG (8.15lbs) with a payload capability 13Kilos (29.74lbs), without needing a cumbersome counterweight or shaft. Applying iOptron’s multi decade experience creating precision mounts, the HEM27 brings this vision to reality.

Utilizing state of the art harmonic drive technology for the RA movement in tandem with backlash-free DEC worm/belt drive design, the HEM27s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction break and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

The HEM27EC features a high precision RA axis encoder that delivers incredible tracking accuracy, enough that many will choose to image “sans” guiding.

* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.

HEM27_Manual

Introducing the HEM27, iOptron’s revolutionary hybrid harmonic drive mounts. These light weight, high payload tiny titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at 3.7kgs with a payload capability 13.5kgs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi decade experience creating precision mounts, the HEM27 brings this vision to reality.

Utilizing state of the art harmonic drive technology for the RA movement in tandem with backlash-free DEC worm/belt drive design, the HEM27s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction break and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

Features

• Advanced harmonic drive technology
• Payload capacity of 13.5 kg with the mount weight of 3.7 kg
• CNC machined and cast metal body
• Unique friction brake to safely stop movement during a planned or unplanned power interruption
• 360 second gear period
• Permanent periodic error correction (PPEC)
• Go2Nova® hand controller with ~212,000 object database
• Cable management system, no hanging exterior cables to moving parts
• Dual saddle (Vixen and Losmandy-D styles)
• Built in zero position search and locator
• Power down position and location memory
• Integrated ST-4 autoguiding port
• Built-in Wi-Fi (via hand controller)
• USB port for firmware upgrade and computer control
• Soft carrying case

Note: Does not include Tripod (available separately)

HEM27_Manual

Like their predecessors, the C262A3 is designed with portability in mind, weighing in at only 4.5kg it can support up to a 12kg payload an incredible 2.6 mount weight to payload ratio. The key to enable such ratios is the CEM design focuses the mount and payload weight directly on the center of the tripod rendering “natural stability”.

Building on the legacy of earlier CEM models we have added features for convenience and functionality. A positive lock gear engagement system (easy to use even when wearing gloves), Built-in Wi-Fi enabling unparallel connectivity and recordable permanent periodic error correction (PPEC) to repeat optimal PEC training sessions. Regarding functionality the C262A3 delivers precise pointing and accurate tracking. The CEM26 sets the new standard for compact equatorial mounts.

The center-balanced design mount puts the weight of the payload at the center of gravity allowing for greater natural stability. Other features include an adjustable counterweight bar to prevent obstruction with the tripod. And polar aligning is quick and accessible all the time since the polar scope is not blocked by the declination shaft.

The C262A3 is equipped with the latest advanced GOTONOVA® GOTO technology, making it one of the most powerful and accurate GOTO mounts available. Its database includes over 212,000+ objects. The Go2Nova® Hand Controller is intuitive to use and its large 4-line LCD screen simplifies the process of setting telescopes and locating objects.

The CEM26A mount has an integrated electronic polar finder scope known as the iPolar. This tool ensures the accurate alignment of a telescope, even when the pole star is obscured. It comes with a 1.5" heavy duty stainless steel tripod and an aluminum carrying case.

Features

• Unique design, center-balanced equatorial mount (CEM)for maximum payload and minimum mount weight
• Ideal for both visual observation and astrophotography
• Low periodic error (< ± 10 arc seconds)
• Payload of 12 kg (26 lbs) with the mount-only weight of 4.5 kg (10 lbs)
• CNC machined and cast metal body
• Spring loaded gear system
• Large easy to use quick-lock gear clutches
• 0º latitude operation with optional adapter
• Stepper motor with low power consumption
• Integrated iOptron iPolar^TM electronic polar scope
• Polar alignment routine for those who can’t see the Pole Star
• Go2Nova® 8409 controller with Advanced GOTONOVA® GOTO Technology
• Integrated ST-4 autoguiding port
• Built-in Wi-Fi
• USB port for firmware upgrade and computer control
• LiteRoc heavy-duty stainless steel tripod w/ vibration suppression pads (7.5kg)
• Die-cast metal tripod spreader with accessory tray
• Hard carrying case
• Optional 32-channel Global Positioning System (GPS)
• Optional iGuider^TM autoguiding system #3360

Supplied with an American power supply from factory

Like their predecessors, the C261A3 is designed with portability in mind, weighing in at only 4.5kg it can support up to a 12kg payload an incredible 2.6 mount weight to payload ratio. The key to enable such ratios is the CEM design focuses the mount and payload weight directly on the center of the tripod rendering “natural stability”.

Building on the legacy of earlier CEM models we have added features for convenience and functionality. A positive lock gear engagement system (easy to use even when wearing gloves), Built-in Wi-Fi enabling unparallel connectivity and recordable permanent periodic error correction (PPEC) to repeat optimal PEC training sessions. Regarding functionality the C261A3 delivers precise pointing and accurate tracking. The CEM26 sets the new standard for compact equatorial mounts.

The center-balanced design mount puts the weight of the payload at the center of gravity allowing for greater natural stability. Other features include an adjustable counterweight bar to prevent obstruction with the tripod. And polar aligning is quick and accessible all the time since the polar scope is not blocked by the declination shaft.

The C261A3 is equipped with the latest advanced GOTONOVA® GOTO technology, making it one of the most powerful and accurate GOTO mounts available. Its database includes over 212,000+ objects. The Go2Nova® Hand Controller is intuitive to use and its large 4-line LCD screen simplifies the process of setting telescopes and locating objects.

The CEM26A mount has an integrated electronic polar finder scope known as the iPolar. This tool ensures the accurate alignment of a telescope, even when the pole star is obscured. It comes with a 1.5" heavy duty stainless steel tripod and an aluminum carrying case.

Shipping Box #1: C261A-CEM26 Head w/ iPolar/Tray (C261A)
Shipping Box #2: 8283-CEM26/GEM28 LiteRoc Tripod w/o Tray (C26/G28 LiteRoc)

Features

• Unique design, center-balanced equatorial mount (CEM) for maximum payload and minimum mount weight
• Ideal for both visual observation and astrophotography
• Low periodic error (< ± 10 arc seconds)
• Payload of 12 kg (26 lbs) with the mount-only weight of 4.5 kg (10 lbs)
• CNC machined and cast metal body
• Spring loaded gear system
• Large easy to use quick-lock gear clutches
• 0º latitude operation with optional adapter
• Stepper motor with low power consumption
• Integrated iOptron iPolar^TM electronic polar scope
• Polar alignment routine for those who can’t see the Pole Star
• Go2Nova® 8409 controller with Advanced GOTONOVA® GOTO Technology
• Integrated ST-4 autoguiding port
• Built-in Wi-Fi
• USB port for firmware upgrade and computer control
• LiteRoc heavy-duty stainless steel tripod w/ vibration suppression pads (7.5kg)
• Die-cast metal tripod spreader with accessory tray
• Optional 32-channel Global Positioning System (GPS)
• Optional hard carrying case
• Optional iGuider^TM autoguiding system #3360

Supplied with an American power supply from factory

Specs

This Hard Case for CEM70 mount protects your mount whether you're heading out for a night of observation, or when you need to store it. The case features custom-fit foam padding to hold the mount in place and cushion it from impacts. The exterior has reinforced edges on the outside to help minimize denting and damage. There are dual trigger latches to secure the lid in place, and a carry handle.

The All NEW iOptron CEM120EC

An extraordinary innovation in mount design...Now with a new payload!

Recognizing the growing demand for an accurate and stable, equatorial mount with the versatility to carry larger instruments and more complex imaging arrays, we created the iOptron CEM120EC. It offers the benefits of our revolutionary “center balance” design: stability, accuracy, and smooth mechanical operation, while capable of carrying a payload up to 52 kg. The “center balance” design’s natural stability is due to its focusing the mount along with payloads weight directly over the center of the pier or tripod.

The CEM120EC's performance is demonstrated by its low periodic tracking error of <0.15 arcsec RMS. Along with the stability aspect, the CEM120EC features an advanced cable management system consisting of more ports in more locations preventing tangle ups and reducing the chance of fractured cables. It also adds some new features to the CEM family like Wi-Fi and LAN for remote operation and easy to use, reliable clutches on both axes.

Optional Extra's

Optional heavy duty Tri-Pier 360 and Permanent Pier are available for order.

/product/ioptron-tri-pier-360

Optional Tri-Pier adapter for light weight payload ( 8036-120) is also available for $239. It can be modified for permanent pier mounting.

Features

• A new design, center-balanced equatorial mount (CEM) for maximum payload with natural stability
• Observatory astrophotography mount ideal for both visual and Astro-photographers
• Payload of 52 kg with the mount weight of 26 kg
• Easy to use and reliable gear clutches
• Precision altitude and azimuth adjustment.
• Precision stepper motor with 0.07 arcsec accuracy for precise GOTO and accurate tracking
• Polar alignment routine for those who can't see the Pole Star
• Go2Nova® 8407 V2 controller with Advanced GOTONOVA® GOTO Technology with built in heater
• High precision tracking with low periodic error (PE)<0.15 arcsec RMS
• Real time periodic error correction (RPEC)
• 32-channel Global Positioning System (GPS)
• Built-in WiFi and LAN for remote operation
• Integrated ST-4 autoguiding port
• Advanced cable management system with more choices
• Spring loaded, individual adjustable Losmandy saddle

Specifications

Supplied with an American power supply from factory

Manuals and Instructions

Quick Start Guide

Instruction Manual

AUX port plug (DIN-422) assembly

Latest Firmware

SKU: 7301
