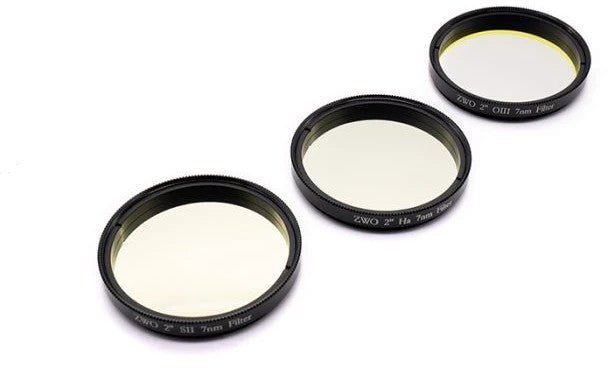

ZWO Narrowband 7nm Filter Set 2in

SKU ZWO-NB7nmD2
Available to order
Contact us for ETA
Original price $1,199.00 - Original price $1,199.00
Original price
$1,199.00
$1,199.00 - $1,199.00
Current price $1,199.00
Return Policy

Please see our return policy here.

Same day shipping

If you order before 2pm we will ship your items same day.

Expert aftersales support

We fully support our products!

Minimum 2-Year Warranty.

+ extended manufacturer warranties

Aussie Owned & Stocked

Our store is Australian owned and stocked.

New from ZWO

ZWO Narrowband 7nm filter set increases the contrast between nebula and night sky by helping to reduce the transmission of certain wavelengths of light, specifically those produced by artificial light including mercury vapour, and both high and low pressure sodium vapour lights and the unwanted natural light caused by neutral oxygen emission in our atmosphere (i.e. skyglow).

Details

Name: ZWO Narrowband 7nm filter Set 2in

Size: 2″

Thickness: 5mm+2.5mm(thread)

Thread: M48.5*0.75 male thread

The ZWO narrowband H-Alpha filter has a bandpass of 7nm and passes light at 656nm wavelength, light transmission rate comes up to 80%. Best choice of narrowband H-alpha astrophotography filter for high-contrast imaging and revealing rich details of the nebula even in areas with strong light pollution, just prepare to experience the infinite fun with it!

The ZWO narrowband S-II 7nm filter passes light at 672nm wavelength with a bandpass of 7nm which is designed for nebula observation. It is suitable for visual observation on most emission nebulae, planetary nebulae and supernova remnants, use it with H-alpha and OIII narrowband filters (SHO Set) for tricolor CCD astrophotography.

The ZWO narrowband O-III 7nm filter is designed for nebula observation allowing the 7nm bandwidth of light centered on a wavelength of 500nm through, which corresponds to OIII emission lines, blocking out all other light. Adding the ZWO O-III Narrowband filter to your imaging collection will help you go beyond the RGB imaging and will help capture your favorite nebulae in a totally new light, no matter how polluted your skies may be!

Technical Data

  • FWHM:7±0.5nm
  • Fine-optically polished to ensure accurate 1/4 wavefront over the both surfaces
  • About 90% transmission at H-alpha line 656nm (H-Alpha filter )
  • About 90% transmission at SII line 672nm (SII filter )
  • About 90% transmission at major OIII line 500nm (OIII filter )
  • Infrared wavelength 700-1100nm cut-off
  • <0.1% transmission of off-band, OD3(Optical Density)
Transmission Curve
