ZWO IR cut filter 2 inch is suitable for colour camera with AR protect window.

The ZWO IR Cut Filter 2 inch blocks infrared light from reaching the sensor of your CCD or CMOS camera or your expensive H-alpha filter. When imaging, the addition of this simple and inexpensive accessory will result in sharper images, and when doing solar work, the IR Cut Filter will your protect H-alpha filter from the damaging effects of infrared radiation.

Infrared or IR light is invisible to the human eye, and so even though most telescopes are not designed to focus IR light, it does not matter when you are using your telescope visually. However, when you add a camera to the mix, its a whole other story! Unlike the human eye, a silicon sensor is very sensitive to light in the infrared portion of the spectrum, and that is a problem because infrared images are blurry as all get out. That means your nice, sharp visual light image is degraded by the addition of the infrared layer. This problem can easily be solved by blocking the infrared, and the ZWO IR Cut filter 2 inch will do just that.

The ZWO IR Cut filter is housed in a 2″ cell, and has internal threads so that you can stack filters together. The filter comes with a protective plastic case.

Technical Parameter:

Name: IR-cut filter

Size: 2″

Thickness: 5mm+2mm(Thread)

Thread: M48*0.75 male thread

ZWO Duo-Band Filter is a dual narrowband filter primarily aimed at complementing our range of colour ASI cameras. The Duo-Band filter is aimed at the astronomer who may already own a One Shot Colour (OSC) camera and wants to image using narrowband techniques or emission objects without purchasing a mono camera, filter wheel and narrowband filter set.

The Duo-Band filter offers an economical entry into the world of narrowband imaging and can also offer a practical solution to imaging in light polluted urban areas.

The dual band pass nature of the Duo-Band filter passes light at Hα (656nm) and OIII (500nm) wavelength, and can reduce the interference from natural light sources such as moonlight, or artificial light pollution such as street lighting.

It can help improve the contrast and visibility of deep sky objects such as emission nebula using a OSC (One Shot Colour) camera.

If you are looking for a solution to deep sky photography in light pollution area, then ZWO Duo-Band Filter will be a great choice.

The Duo-Band filter can be used with all ASI cameras and EFW Electronic Filter Wheel and comes in 1.25” and 2” sizes.

Precision CNC machined from Aircraft grade alloys,hard anodised finished Cell with Laser engravings, finely polished optical surface to ensure 1/4 wavefront and <30 arc seconds parallelism over the both surfaces. Precise double sided coatings with anti-reflection coatings

ZWO Duo-Band Filter Technical Specification

Size: Standard 1.25”

Thickness: 1.85 mm

Bandwidth: HA (15nm) OIII (35nm)

Surface quality: 60/40 (Refer to MIL-O-13830)

Schott substrate material

More than 90% transmission at major OIII line 486.nm1, 496nm and 501nm.

More than 80% transmission at Ha line 656.3nm

Note:The incoming light transmitted through the filter should be perpendicular to the filter, or the incident angle should be less than 8°. Therefore, this product is not suitable for wide-angle or ultra wide-angle lenses.

Test Results

Images captured with ASI color cameras and Duo-Band Filters. You can see that the potential for deep space photography in strong light polluted areas is vastly improved with the Duo-Band filters.

ZWO Duo-Band Filter 2inch is a dual narrowband filter primarily aimed at complementing our range of colour ASI cameras. The Duo-Band filter is aimed at the astronomer who may already own a One Shot Colour (OSC) camera and wants to image using narrowband techniques or emission objects without purchasing a mono camera, filter wheel and narrowband filter set.

The Duo-Band filter offers an economical entry into the world of narrowband imaging and can also offer a practical solution to imaging in light polluted urban areas.

The dual band pass nature of the Duo-Band filter passes light at Hα (656nm) and OIII (500nm) wavelength, and can reduce the interference from natural light sources such as moonlight, or artificial light pollution such as street lighting.

It can help improve the contrast and visibility of deep sky objects such as emission nebula using a OSC (One Shot Colour) camera.

If you are looking for a solution to deep sky photography in light pollution area, then ZWO Duo-Band Filter will be a great choice.

The Duo-Band filter can be used with all ASI cameras and EFW Electronic Filter Wheel and comes in 1.25” and 2” sizes.

Precision CNC machined from Aircraft grade alloys,hard anodised finished Cell with Laser engravings, finely polished optical surface to ensure 1/4 wavefront and <30 arc seconds parallelism over the both surfaces. Precise double sided coatings with anti-reflection coatings

ZWO Duo-Band Filter Technical Specification

Size: Standard :2”

Thickness: 1.85 mm

Bandwidth: HA (15nm) OIII (35nm)

Surface quality: 60/40 (Refer to MIL-O-13830)

Schott substrate material

More than 90% transmission at major OIII line 486.nm1, 496nm and 501nm.

More than 80% transmission at Ha line 656.3nm

Note:The incoming light transmitted through the filter should be perpendicular to the filter, or the incident angle should be less than 8°. Therefore, this product is not suitable for wide-angle or ultra wide-angle lenses.

Test Results

Images captured with ASI color cameras and Duo-Band Filters. You can see that the potential for deep space photography in strong light polluted areas is vastly improved with the Duo-Band filters.

The new ZWO LRGB Filters are designed to approximately equalize the flux of ASI1600 mono sensor

Better transmission, Better coating, Better color separation

Technical Parameter:

Name: ZWO New LRGB Filters Optimized for ASI1600(4 filters)

Size: 1.25″

Thickness: 5.5mm+2.5mm(thread)

Thread: M28.5*0.6

the RGB color combine weights will be approximately 1:1:1

• Fine-optically polished to ensure accurate 1/4 wavefront
• more than 92% transmission at passband
• Infrared wavelength 700-1100nm cut-off
• Precision off-band blocking
• Multi-layers anti-reflection coating
• Small spectral “gap” to minimize effect of light pollution
• More parfocal – thickness 1.9+/-0.03 mm

here is the the transmission curve

The ZWO Methane band (CH4) filter is a special filter for photographical use.

Its FWHM is 20nm which is suitable for most IR sensetive color or mono cameras.It can reveal the detail of the target and not too dark.

It is recommended for planetary imaging such like Jupiter, Saturn and the other planets.

The ZWO LRGB 36mm filter set has better transmission, better coating, better color separation

the RGB color combine weights will be approximately 1:1:1

• Fine-optically polished to ensure accurate 1/4 wavefront
• more than 92% transmission at passband
• Infrared wavelength 700-1100nm cut-off
• Precision off-band blocking
• Multi-layers anti-reflection coating
• Small spectral “gap” to minimize effect of light pollution
• More parfocal – thickness 2mm

Technical Parameter:

Name: ZWO LRGB 36mm filter set (4 filters)

Size: 36mm

Thickness: 2mm

Transmission Curve

The new ZWO LRGB 2in Filters has good performance in transmission, the high quality coatings offer good colour separation.

Fits the NEW ZWO EFW-5x2 and ZWO-EFW-7x2

Technical Parameter:

Name: ZWO LRGB 2in Filters (4 filters)

Size: 2″

Thickness: 5 mm+2.5mm(thread)

Thread: M48*0.75

Thickness: 1.85mm

the RGB color combine weights will be approximately 1:1:1

• Fine-optically polished to ensure accurate 1/4 wavefront
• more than 92% transmission at passband
• Infrared wavelength 700-1100nm cut-off
• Precision off-band blocking
• Multi-layers anti-reflection coating
• Small spectral “gap” to minimize effect of light pollution
• More parfocal – thickness 1.9+/-0.03 mm

here is the the transmission curve

New ZWO 2″ filter drawer featuring the anti-light-leaking design that can effectively solve the light leaking issue under long exposure.

NEW: Double strong magnets adopted for stronger adsorption, easier installation and filter removal.

Lock screw on the side for you to adjust the tension of the holder to eliminate gap. It's a way to make sure the filter is positioned correctly.

M54 filter drawer

• Diameter 70mm * Thickness 20mm
• M54 * 0.75 male (external) thread (camera side)
• M48 * 0.75 female (internal) thread (filter end)
• M54 * 0.75 female (internal) thread (telescope side)
• Suitable for 2-inch astronomical filters and full frame cameras, such as ASI2600MC Duo, ASI6200 and ASI2400 series.

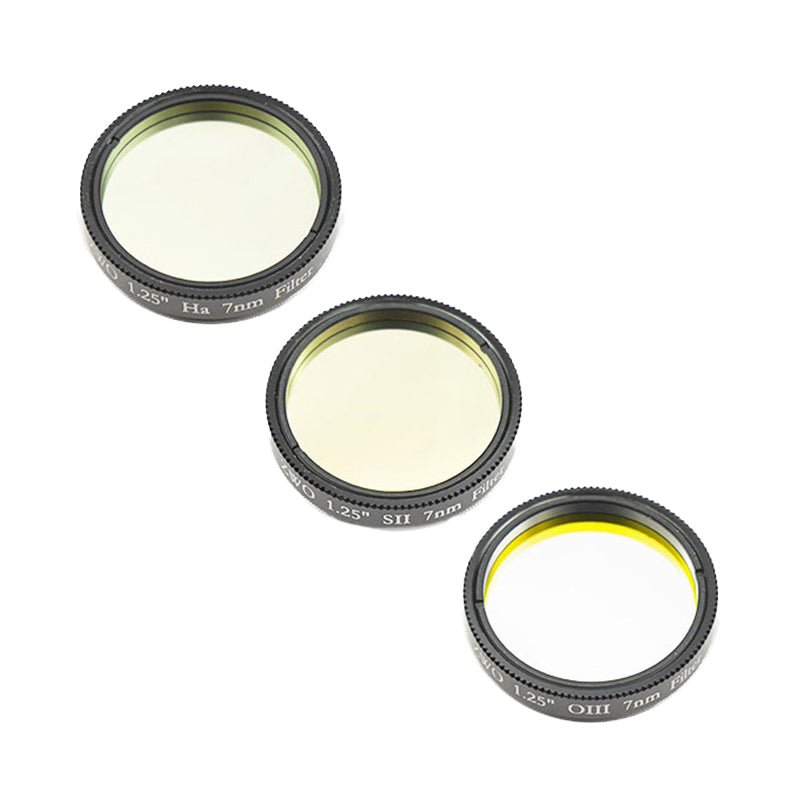

Narrowband filter does not eliminate the effects of light pollution or increase the object’s brightness. In many cases, they increase the contrast between nebula and night sky, not brightening the nebula.

It can reduce the transmission of certain wavelengths of light, specifically those produced by artificial light including mercury vapor, and both high and low pressure sodium vapor lights and the unwanted natural light caused by neutral oxygen emission in our atmosphere (i.e. skyglow).

Technical Parameter:

Name: ZWO New narrowband 1.25″ filter

Size: 1.25″

Thickness: 5.5mm+2.5mm(thread)

Glass thickness: 1.85mm

Thread: M28.5*0.6 male thread

The ZWO H-Alpha filter has a bandpass of 7nm and passes light at 656nm wavelength, light transmission rate comes up to 80%. Best choice of narrowband H-alpha astrophotography filter for high-contrast imaging and revealing rich details of the nebula even in areas with strong light pollution, just prepare to experience the infinite fun with it!

The ZWO narrowband S-II 7nm filter passes light at 672nm wavelength with a bandpass of 7nm which is designed for nebula observation. It is suitable for visual observation on most emission nebulae, planetary nebulae and supernova remnants, use it with H-alpha and OIII narrowband filters (SHO Set) for tricolor CCD astrophotography.

The ZWO narrowband O-III 7nm filter is designed for nebula observation allowing the 7nm bandwidth of light centered on a wavelength of 500nm through, which corresponds to OIII emission lines, blocking out all other light. Adding the ZWO O-III Narrowband filter to your imaging collection will help you go beyond the RGB imaging and will help capture your favourite nebulas in a totally new light, no matter how polluted your skies may be!

Technical Data

• FWHM：7±0.5nm
• Glass Thickness 2.0+/-0.03 mm (1.25”/31mm/36mm)
• Fine-optically polished to ensure accurate 1/4 wavefront over the both surfaces
• About 90% transmission at H-alpha line 656nm (H-Alpha filter )
• About 90% transmission at SII line 672nm (SII filter )
• About 90% transmission at major OIII line 500nm (OIII filter )
• Infrared wavelength 700-1100nm cut-off
• <0.1% transmission of off-band, OD3(Optical Density)

Transmission Curve

We made a test of our Ha Filters (ASI1600 mono camera, single frame, 300s, DDP in MaximDL) :

New from ZWO

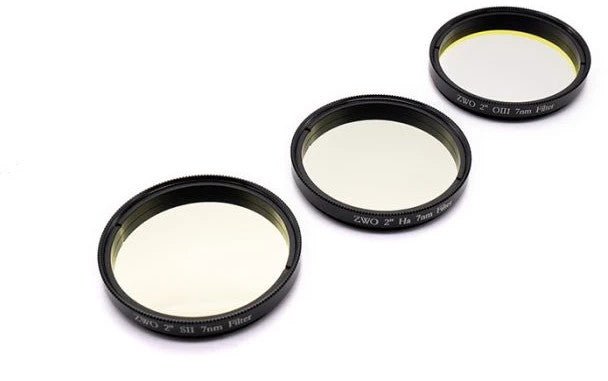

ZWO Narrowband 7nm filter set increases the contrast between nebula and night sky by helping to reduce the transmission of certain wavelengths of light, specifically those produced by artificial light including mercury vapour, and both high and low pressure sodium vapour lights and the unwanted natural light caused by neutral oxygen emission in our atmosphere (i.e. skyglow).

Details

Name: ZWO Narrowband 7nm filter Set 2in

Size: 2″

Thickness: 5mm+2.5mm(thread)

Thread: M48.5*0.75 male thread

The ZWO narrowband H-Alpha filter has a bandpass of 7nm and passes light at 656nm wavelength, light transmission rate comes up to 80%. Best choice of narrowband H-alpha astrophotography filter for high-contrast imaging and revealing rich details of the nebula even in areas with strong light pollution, just prepare to experience the infinite fun with it!

The ZWO narrowband S-II 7nm filter passes light at 672nm wavelength with a bandpass of 7nm which is designed for nebula observation. It is suitable for visual observation on most emission nebulae, planetary nebulae and supernova remnants, use it with H-alpha and OIII narrowband filters (SHO Set) for tricolor CCD astrophotography.

The ZWO narrowband O-III 7nm filter is designed for nebula observation allowing the 7nm bandwidth of light centered on a wavelength of 500nm through, which corresponds to OIII emission lines, blocking out all other light. Adding the ZWO O-III Narrowband filter to your imaging collection will help you go beyond the RGB imaging and will help capture your favorite nebulae in a totally new light, no matter how polluted your skies may be!

Technical Data

• FWHM：7±0.5nm
• Fine-optically polished to ensure accurate 1/4 wavefront over the both surfaces
• About 90% transmission at H-alpha line 656nm (H-Alpha filter )
• About 90% transmission at SII line 672nm (SII filter )
• About 90% transmission at major OIII line 500nm (OIII filter )
• Infrared wavelength 700-1100nm cut-off
• <0.1% transmission of off-band, OD3(Optical Density)

Transmission Curve

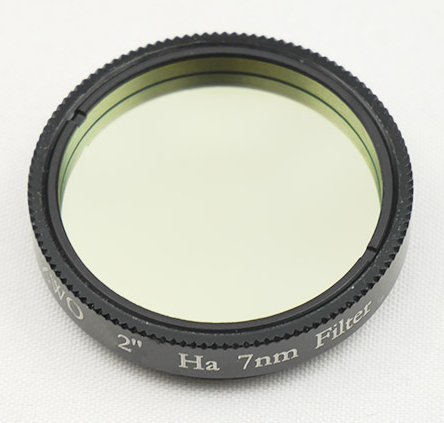

ZWO Ha 7nm filter 2in increases the contrast between nebula and night sky by helping to reduce the transmission of certain wavelengths of light, specifically those produced by artificial light including mercury vapour, and both high and low pressure sodium vapour lights and the unwanted natural light caused by neutral oxygen emission in our atmosphere (i.e. skyglow).

The ZWO Ha 7nm Filter filter has a bandpass of 7nm and passes light at 656nm wavelength, light transmission rate comes up to 80%. Best choice of narrowband H-alpha astrophotography filter for high-contrast imaging and revealing rich details of the nebula even in areas with strong light pollution, just prepare to experience the infinite fun with it!

Technical Data

• FWHM：7±0.5nm
• Fine-optically polished to ensure accurate 1/4 wavefront over the both surfaces
• About 90% transmission at H-alpha line 656nm (H-Alpha filter )
• Infrared wavelength 700-1100nm cut-off
• <0.1% transmission of off-band, OD3(Optical Density)

Transmission Curve

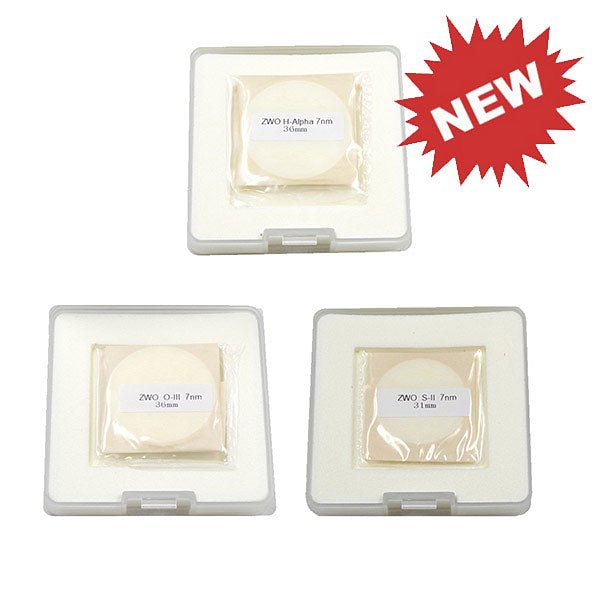

ZWO Narrowband 7nm 36mm Filter Set

ZWO Narrowband 7nm 36mm filter set increases the contrast between nebula and night sky by helping to reduce the transmission of certain wavelengths of light, specifically, those produced by artificial light including mercury vapour, and both high and low-pressure sodium vapour lights and the unwanted natural light caused by neutral oxygen emission in our atmosphere (i.e. skyglow).

Details

Name: ZWO Narrowband 7nm 36mm filter set

Size: 36mm

Thickness: 2mm

The ZWO narrowband H-Alpha filter has a bandpass of 7nm and passes light at 656nm wavelength, the light transmission rate comes up to 80%. Best choice of narrowband H-alpha astrophotography filter for high-contrast imaging and revealing rich details of the nebula even in areas with strong light pollution, just prepare to experience the infinite fun with it!

The ZWO narrowband S-II 7nm filter passes light at 672nm wavelength with a bandpass of 7nm which is designed for nebula observation. It is suitable for visual observation on most emission nebulae, planetary nebulae, and supernova remnants, use it with H-alpha and OIII narrowband filters (SHO Set) for tricolor CCD astrophotography.

The ZWO narrowband O-III 7nm filter is designed for nebula observation allowing the 7nm bandwidth of light centered on a wavelength of 500nm through, which corresponds to OIII emission lines, blocking out all other light. Adding the ZWO O-III Narrowband filter to your imaging collection will help you go beyond the RGB imaging and will help capture your favorite nebulae in a totally new light, no matter how polluted your skies may be!

Technical Data

• FWHM：7±0.5nm
• Fine-optically polished to ensure an accurate 1/4 wavefront over both surfaces
• About 90% transmission at H-alpha line 656nm (H-Alpha filter )
• About 90% transmission at SII line 672nm (SII filter )
• About 90% transmission at major OIII line 500nm (OIII filter )
• Infrared wavelength 700-1100nm cut-off
• <0.1% transmission of off-band, OD3(Optical Density)

Transmission Curve

SKU: ZWO-NB7nmD36

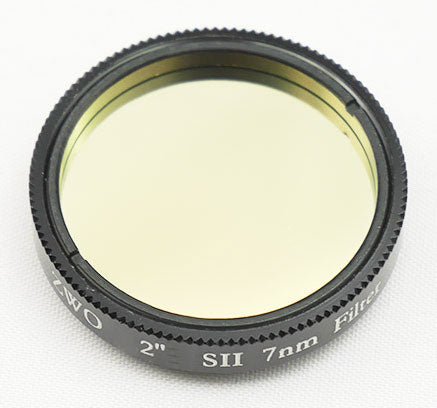

The ZWO SII 7nm 2in filter passes light at 672nm wavelength with a bandpass of 7nm which is designed for nebula observation. It is suitable for visual observation on most emission nebulae, planetary nebulae and supernova remnants, use it with H-alpha and OIII narrowband filters (SHO Set) for tricolor CCD astrophotography.

Technical Data

• FWHM：7±0.5nm
• Fine-optically polished to ensure accurate 1/4 wavefront over the both surfaces
• About 90% transmission at SII line 672nm (SII filter )
• Infrared wavelength 700-1100nm cut-off
• <0.1% transmission of off-band, OD3(Optical Density)

Transmission Curve

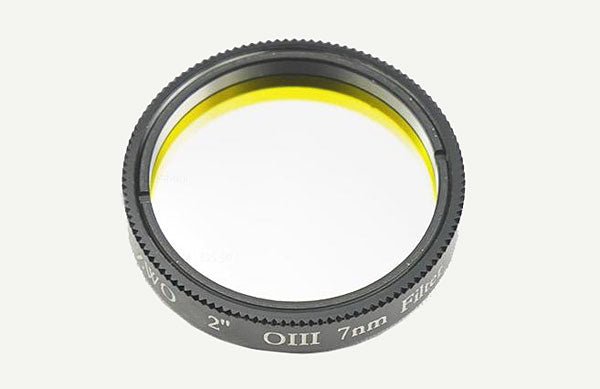

ZWO OIII 7nm 2in filter increases the contrast between nebula and night sky by helping to reduce the transmission of certain wavelengths of light, specifically those produced by artificial light including mercury vapour, and both high and low pressure sodium vapour lights and the unwanted natural light caused by neutral oxygen emission in our atmosphere (i.e. skyglow).

Details

Name: ZWO Narrowband 7nm filter Set 2in

Size: 2″

Thickness: 5mm+2.5mm(thread)

Thread: M48.5*0.75 male thread

The ZWO OIII 7nm 2in filter is designed for nebula observation allowing the 7nm bandwidth of light centered on a wavelength of 500nm through, which corresponds to OIII emission lines, blocking out all other light. Adding the ZWO O-III Narrowband filter to your imaging collection will help you go beyond the RGB imaging and will help capture your favorite nebulae in a totally new light, no matter how polluted your skies may be!

Technical Data

• FWHM：7±0.5nm
• Fine-optically polished to ensure accurate 1/4 wavefront over the both surfaces
• About 90% transmission at major OIII line 500nm (OIII filter )
• Infrared wavelength 700-1100nm cut-off
• <0.1% transmission of off-band, OD3(Optical Density)

Transmission Curve
