The incorporated vibration-canceller mechanism assures very stable image
Vibration by hands makes it often difficult to see clearly objects particularly at high magnification. ATERA H12x30 incorporates a vibration-canceller mechanism with a 2-axis gimbal control image stabilization mechanism. With a strong correction effect of vibration correction angle ± 3 degrees (up, down, left and right), a stable field of view can be obtained even at a high magnification of 12 times. Since micro vibration is also cancelled, it outperforms in observing details such as the shine of bird's eyes and the pattern of feathers. Also, if you observe a star, you can observe up to the darkest star as much as 1st grade than ordinary, which can not be seen with blurring.
Lightest 422g design allows easy handheld use
At just 422g, these are some of the lightest weight as binoculars equipped with a vibration cancelling mechanism.
Stamina 12 hours duration with AAA batteries
Two AAA batteries are used for power supply. Since it is easy to obtain anywhere, it is safe to observe in the field and live in remote areas.
Thanks to the long-life design of operation time of around 12 hours (using a new alkaline dry battery at 20 ° C), you can focus on observation without worrying about battery consumption. Auto power off function which automatically turns off the power after 5 minutes elapses prevents wasteful battery drain.
Clear visibility by three coatings
By applying fully multi coating with anti-reflection multilayered coat on the entire lens surface, the phase coat on the prism that reduces halation and dramatically increases resolution, and a high reflection coat that increases the brightness of the image, stray light and loss of light intensity are thoroughly eliminated for an extreme clarity in the field of view.
Ergonomically designed for excellent operability
A gentle rounded form fitting to a small hands, a focus ring that can be turned smoothly with light touch by single finger, a universal design that does not choose dominant hands, locating a battery space away from finger-touch area, all designed for holding comfort without stress. Considering loss of parts in a dark place such as a concert venue, we designed battery lid integrated.
Specifications
| Magnification | 12x |
| Effective objective diameter | 30mm |
| Prism | BK7 (Roof type) / BaK4 (Sub-prism) |
| Coatings | Fully multi-coated, phase-coated, high reflection coating |
| Angular field of view | 4.2° |
| Apparent field of view | 47.5° |
| Field of view at 1000m | 73m |
| Exit pupil | 2.6mm |
| Brightness | 6.3 |
| Eye relief | 17.5mm |
| Close focus | 2.5m |
| Interpupillary distance | 55mm to 75mm |
| Anti-vibration | Vibration canceller with auto power-off (5 min.) |
| Vibration correction range | Approx. ±3° |
| Battery duration | Approx. 12 hours (2 AAA batteries) |
| Waterproof | No |
| Size | 14.9x10.8x6.2cm |
| Weight | 422g (without batteries) |
| Tripod adaptability | Not available |
In The Box

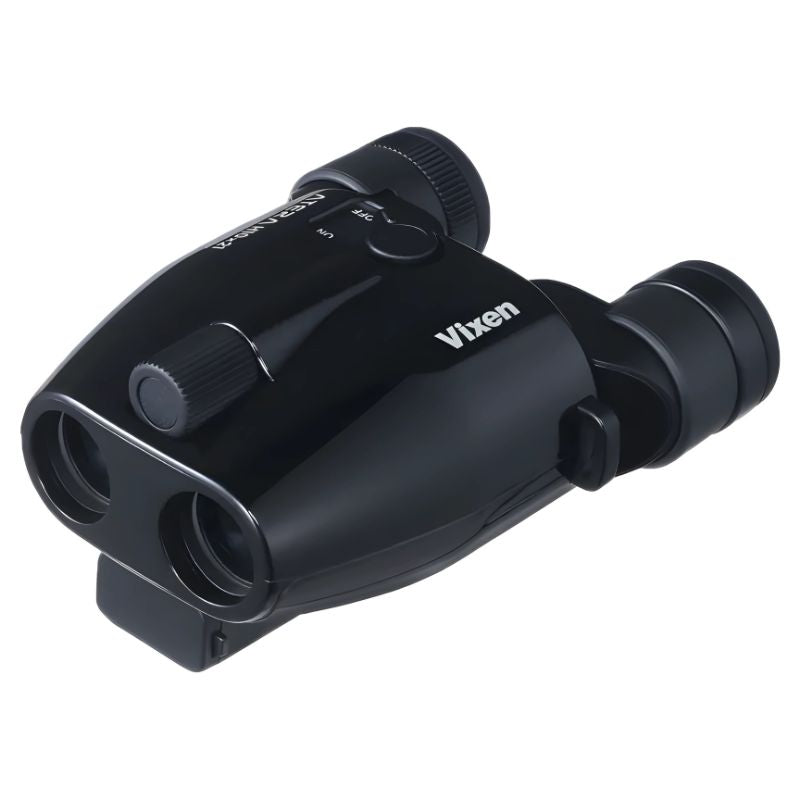

- Vixen Atera 12x30 Image Stabiliser Binoculars
- Neck strap
- Mini tote case
- 2 AAA batteries
