Alt-azimuth mount for large binoculars for astronomical observation.
The alt-azimuth mount is compatible with the sturdy tripod SXG-HAL130, SXG-AL130 for SX-series mount and APP-TL130 tripod for AP-series mount. To mount large binoculars for astronomical observation, the optional swing bracket is required.

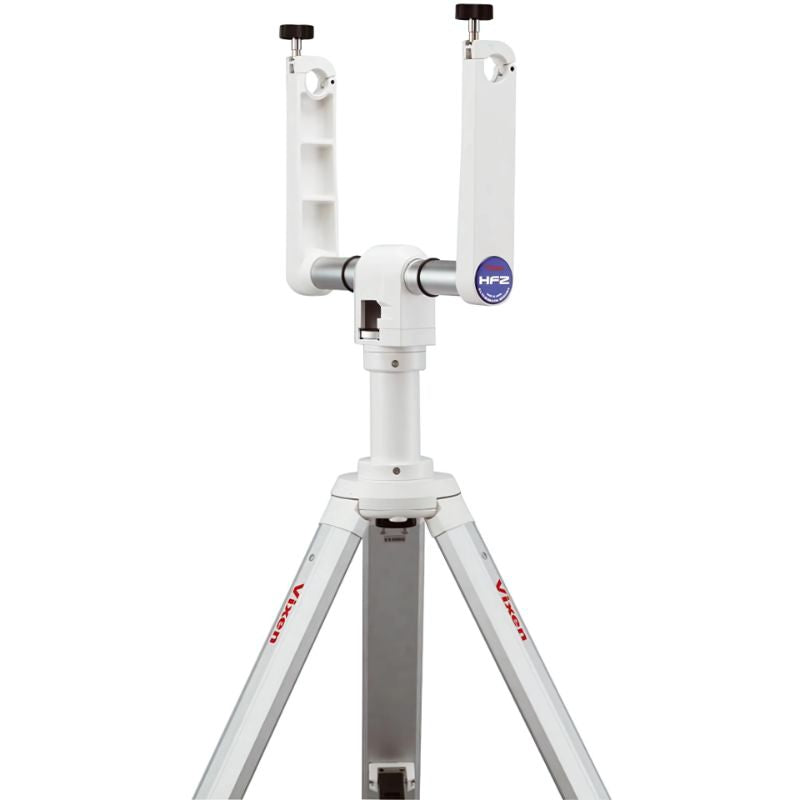

HF2 alt-azimuth fork mount
| Specification | Details |
|---|---|
| Mount Type | Alt-azimuth fork mount |
| Lateral & Vertical Motion | Lateral and vertical motion with friction stop and friction adjustment |
| Max. Loading Capacity | 13 kg |
| Weight | Approx. 3.4 kg (without tripod) |
POLARIE polar scope PF-L
| Specification | Details |
|---|---|
| Magnification / Aperture / Actual Field of View | 6×20mm (8°) |
| Polar Alignment Reticle | Reticle with scales for aligning 3 stars: • Northern Hemisphere: Polaris, Delta UMi, 51 CepS • Southern Hemisphere: Sigma Oct, Chi Oct, Tau Oct |
| Illumination | Auto power-off dark field illuminator, brightness adjustable in 8 steps |
| Power Supply | 1× CR2032 battery (monitor battery included) |
| Setting Accuracy | 3 arc minutes or less |
| Dimensions | 62 × 60 × 142 mm |
| Weight | 220 g (without battery) |
