Vixen code discount
121 products
121 products
Sort by:
- 特色
- 最相关
- 畅销
- 按字母顺序排序,A-Z
- 按字母顺序排序,Z-A
- 价格,从低到高
- 价格,从高到低
- 日期,从旧到新
- 日期,从新到旧
无论您是观鸟者、体育迷还是仅仅喜欢外出享受大自然,Vixen ATREA II H14x42WP 双筒望远镜都能为您提供清晰、稳定的视野,而不会出现高倍双筒望远镜常常出现的抖动。
内置图像稳定功能
双筒望远镜携带方便,是观察周围世界的理想方式。但有一个问题是,当你增加放大倍数以拉近距离时,任何振动、手抖和动作也会被放大。这意味着你必须集中精力稳住双筒望远镜,而不是只是欣赏风景。
Vixen ATREA II H14x42WP 双筒望远镜采用 2 轴万向节控制图像稳定机制,解决了图像抖动问题。这使得它们能够有效地补偿振动校正角度(所有方向)下 +/- 3 度的图像偏移,并提供稳定的双筒望远镜视野。即使是微小的振动也能得到成功控制,您将能够享受观察鸟眼中的光芒和鸟羽毛的细节。
对于天文学来说也很有用!
由于图像稳定功能,您在夜间将能够看到普通双筒望远镜难以看到的暗淡星星和天文物体。
两种图像稳定模式 - 移动物体和远距离观看
双筒望远镜配备两种防震模式,可根据您的需要进行选择:
- V1 模式:吸收小振动和抖动。(当您想要观察移动物体时,最好使用此模式。)
- V2 模式:吸收缓慢移动的较大振动。(当您想欣赏静止物体时,最好使用此模式。)
多层镀膜光学元件
镜头各面均镀有多层防反射镀膜,棱镜采用相位镀膜,减少光晕,提高分辨率,并采用高反射镀膜,这三种光学镀膜彻底消除杂散光和光损失,实现极其明亮清晰的视野。
使用标准 AAA 电池可续航 12 小时
电源使用两节 AAA 电池。任何 Coles、Woolies、7-11 商店或各地的伺服器都可以买到 AAA 电池。这意味着您可以带着 ATERA II H14x42WP 去参加当地活动,或者带着它们去全国各地旅行,因为您知道您总能找到新电池。
防水的
ATERA II H14x42WP 双筒望远镜具有 IPX4 防水等级,这意味着它们可以在潮湿的环境中使用,而不必担心潮湿造成损坏。
规格
| 放大 | 14倍 |
| 有效物镜直径 | 42 毫米 |
| 棱镜类型 | 屋脊棱镜 BK7 和 Bak4(子棱镜) |
| 涂层 | 全多层镀膜、相位镀膜、高反射率介电镀膜 |
| 视场角 | 3.8 度 |
| 视场 | 49.8 度 |
| 1000 米视野 | 66 分钟 |
| 出瞳距离 | 3 毫米 |
| 眼部缓解 | 14 毫米 |
| 近焦 | 4 分钟 |
| 瞳距 | 55mm 至 75mm |
| 减震器 | 2 轴万向节控制图像稳定,具有自动关机功能,具有两种减震模式 |
| 振动校正角度 | 大约 +/- 2 度 |
| 电池/续航时间 | 2 节 AAA 碱性电池 / 12 小时 |
| 方面 | 18.1 x 11.7 x 6.8 厘米 |
| 重量 | 559克(不含电池) |
包装内容
- 颈带
- 迷你手提包
- 2 节 AAA 电池(用于测试目的)
- 双目指示

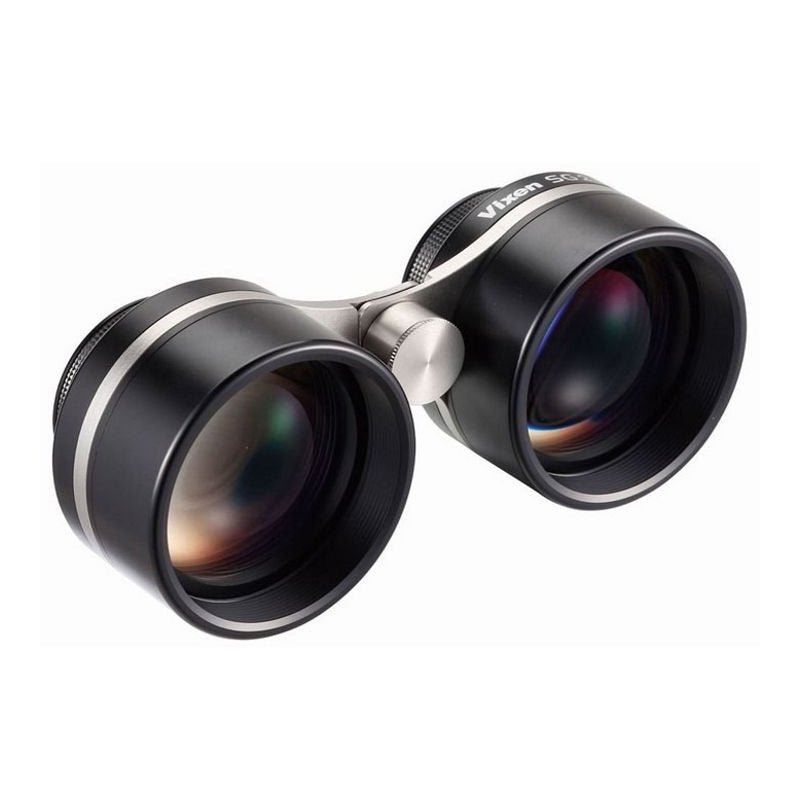

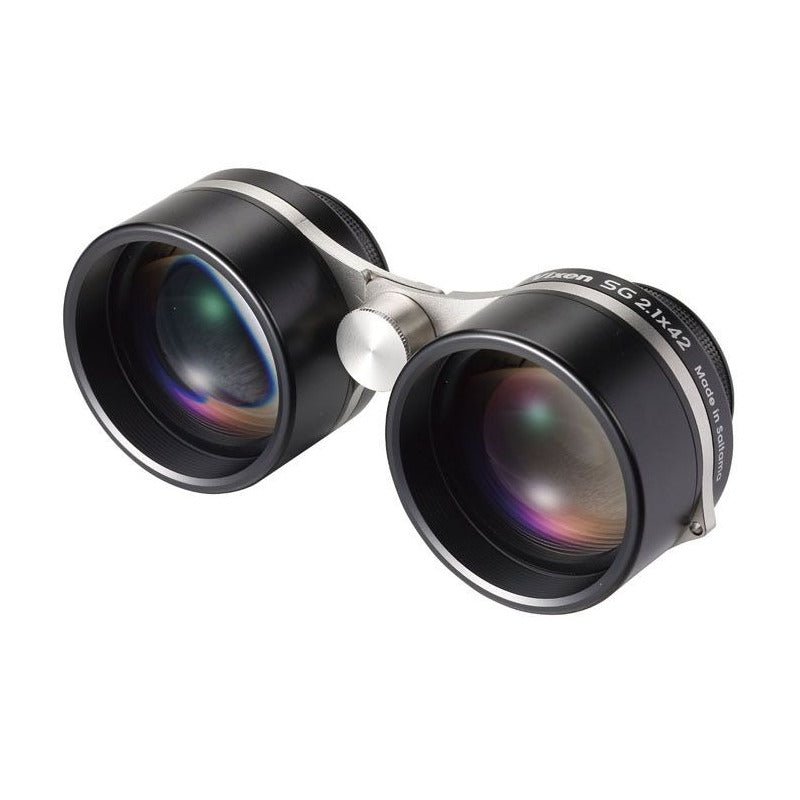

为了真正体验澳大利亚夜空的“太空行走”,将一对 Vixen SG 2.1X42 天文观测双筒望远镜和远离城市或郊区灯光的无月黑夜结合起来,它们将为您带来一个永生难忘的夜晚!
超广角 2.1 倍放大倍率将“放大”到足以看到更精细的细节,而 42 毫米直径的镜头将向您展示暗淡的恒星、星团以及我们所在的星系银河系中气体和尘埃的复杂漩涡和细节。

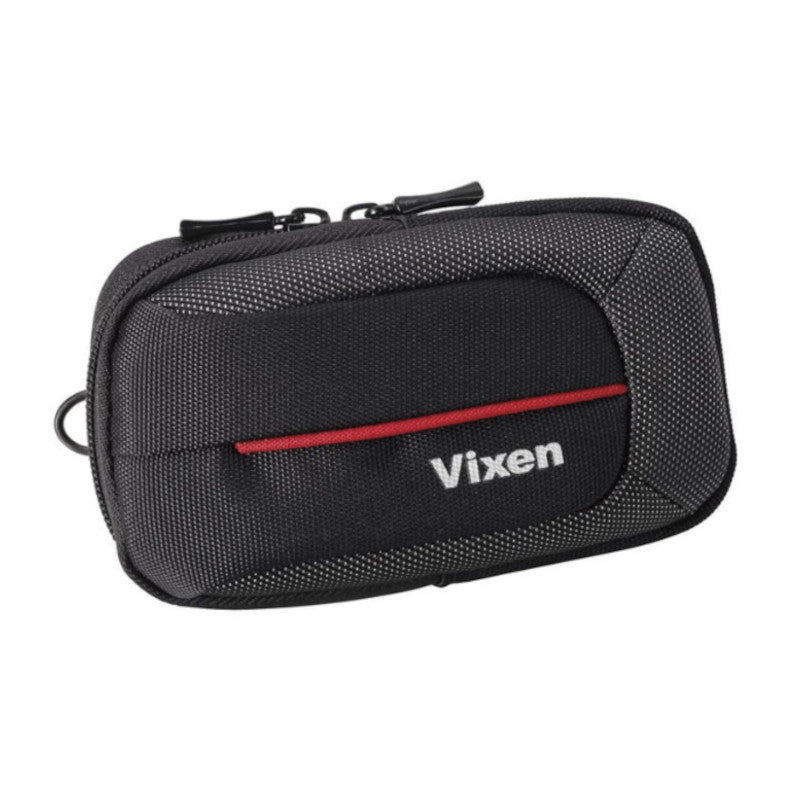

这款双筒望远镜配有坚固的尼龙网携带袋,其质量和对细节的关注达到了日本制造的水平 -

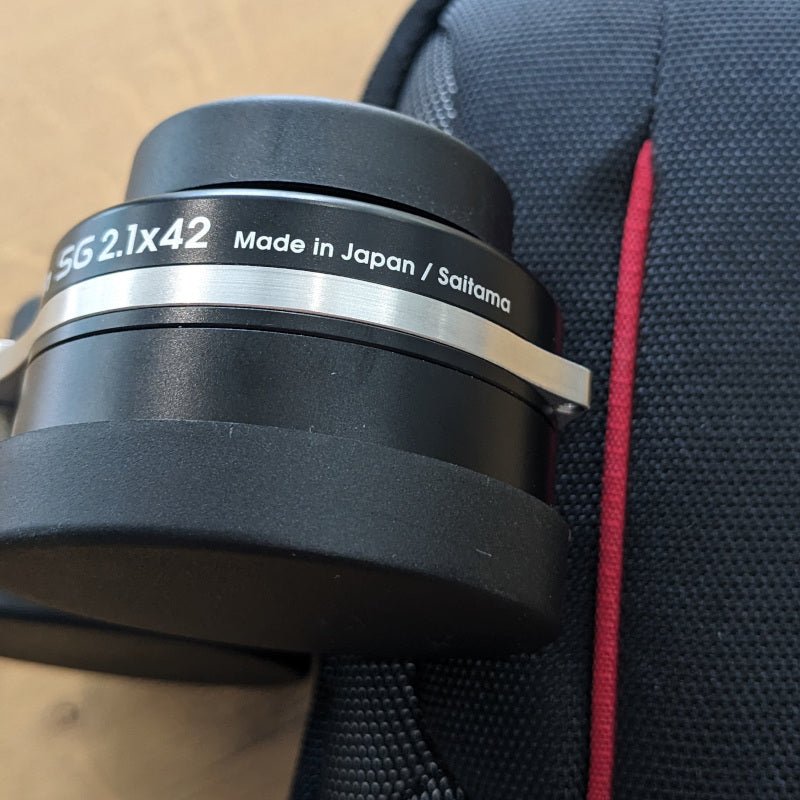

产于埼玉县(Vixen 的家乡!)
这是从镜片抛光、金属加工到组装,全部在埼玉县内进行的“埼玉制造”产品。Vixen Corporation(埼玉县所泽市)负责整个制造过程,而拥有制造抗涩双筒望远镜经验的 Optomiyauchi(埼玉县寄居町)负责零件、金属加工和组装。
规格
| 放大 | 2.1x |
| 物镜直径 | 42 毫米 |
| 棱镜材质 | - |
| 涂层 | 全多层镀膜 |
| 实际视野 | 12.2°(参考) |
| 视场角 | 25.2°(参考) |
| 眼部缓解 | 8.4mm(参考) |
| 近距离对焦 | 2 分钟 |
| 瞳距 | 55mm 至 74mm |
| 尺寸 | 4.6 x 12.8 x 5.4 厘米 |
| 重量 | 410克 |
$83.00
At a glance
Stylish colour binoculars for entry level. Very handy for travel, concerts and sporting events. Colourful and high quality. Take this compact binoculars with you on your travels.
Features
Entry standard model.
Adopted as a model with reduced price while securing designs and basic functions familiar to hands.
Compact・red metallic body.
Compact body which does not get in the way even if put in a bag. If you lift it from the neck with a strap, you will complement fashion more.
It's easy to handle magnification.
Because it has moderate magnification and bright field of view, you can enjoy powerful images that can not be obtained with your eyes easily.
Multi-coated on objectives and eyepieces
Joyful MS8X21 binoculars brings the action up close with clear sharp views.
Specifications
| Magnification | 8x |
| Objective Lens Diameter | 21mm |
| Multi-coated on objectives and eyepieces Angular field of view | 7.0° |
| Apparent FOV | 52.1° |
| FOV at 1000m | 122m |
| Exit pupil | 2.6mm |
| Brightness | 6.8 |
| Eye Relief | 10.0mm |
| Interpupillary Distance | 57mm to 72mm |
| Size | 81 x 109 x 43 cm |
| Weight | 140g |
From $95.00
The 2-group 4-element Plossl optical design of the NPL series eyepieces delivers flat and clear images with good color correction. The NPL20, NPL25, NPL30 and NPL40 eyepieces employ twist-up eye-guards for viewing comfort. The lenses are fully multi-coated for high light transmission.
$399.00
Vixen Apex 8x24 DCF 双筒望远镜是一款完美的全能型紧凑型双筒望远镜。这款出色的 Vixen 双筒望远镜采用紧凑而简单的设计,可用于从节日到高尔夫锦标赛等各种场合。
这款紧凑型双筒望远镜采用全多层镀膜镜片,即使在昏暗的光线或黑暗的剧院中也能提供清晰的图像。您的 Apex 双筒望远镜充满氮气,使其完全防水,能够承受潮湿的环境。
旋转式眼罩可防止双筒目镜的末端敲击眼镜,非常适合戴眼镜的人使用。
铝制机身使得这些紧凑型电脑极其轻便且耐用。
如果您正在寻找紧凑、防水、视野开阔且图像明亮清晰的双筒望远镜,Vixen 的 Apex 系列就是您的最佳选择。
规格
| 放大 | 8X |
| 物镜直径 | 24 毫米 |
| 1000 米视野 | 108 米 |
| 近距离对焦 | 5 分钟 |
| 发光强度 | 9 |
| 暮光因素 | 16.73 |
| 出瞳距离 | 3 毫米 |
| 眼部缓解 | 12 毫米 |
| 方面 | 9.5厘米 x 6.7厘米 x 4.3厘米 |
| 重量 | 0.220公斤 |
| 光学系统 | 屋脊棱镜 |
包装内容:
- Vixen Apex 8x24 DCF 双筒望远镜
- 带子
- 案件
$415.00
Enjoy the beauty of the night sky with a MOBILE PORTA! Highly compact and stable mount for grab and go observing.
The MOBILE PORTA includes all the functions of the award wining PORTA II Mount and is more portable. The telescope can swing freely in both vertical and horizontal directions and remain in place through simple friction. The functional "multi-arm" single fork arm folds in to make for easy transport and storage.
Includes:
Moveable arm. The direction of the multi-arm can be rotated in 15 degree intervals so that you can avoid interfering with the slow motion control handle or the optical tube. In addition, the vertical slow motion control handle can be moved outward, in the horizontal direction, to avoid interference with the horizontal slow motion control handle.
Slow motion handles. The slow motion control handles of the MOBILE PORTA allows for operating the mount in the whole-circle of the vertical and horizontal movements. It is helpful as used together with the friction stop mechanism when observing at high magnification. The position of the slow motion control handles can be changed if needed.
Foldable head mount. The mount head of the MOBILE PORTA can be folded for convenient storage or transport. The mount head is detachable from the tripod. The Tube and Tripod Bag 100, sold separately, is the perfect bag for storage and transport of your MOBILE PORTA.
Dovetail-plate attachment. With Vixen's renowned dovetail-plate system, different optical tubes can be attached easily. The mount holds optical tubes weighing up to 3.5kgs stab
Accessory tray to hold small pieces such as eyepieces. It is very useful for observing in a dark site as it save scrabbling around in low light conditions trying to find important accessories.
In the box:
- MOBILE PORTA Mount
- Aluminium Tripod
- Slow Motion Control Handles
- Accessory Tray
Specifications
MOBILE PORTA
| Specification | Details |
|---|---|
| Mount type | Alt-azimuth mount |
| Vertical and horizontal movements | Worm and wheel gears with 90-teeth whole-circle movement, with tension adjustment screws |
| Optical tube attachment | Dovetail-plate system (with safety screw) |
| Allowable loading weight | 3.5 kgs |
| Tripod legs | 2-section aluminium legs, adjustable from 72cm to 129cm in length (64cm to 114cm in height), spread 35cm to 71cm in radius |
| Dimensions | 19cm x 15cm x 17cm |
| Weight | 2.4 kgs |
Download manual here
$37.00

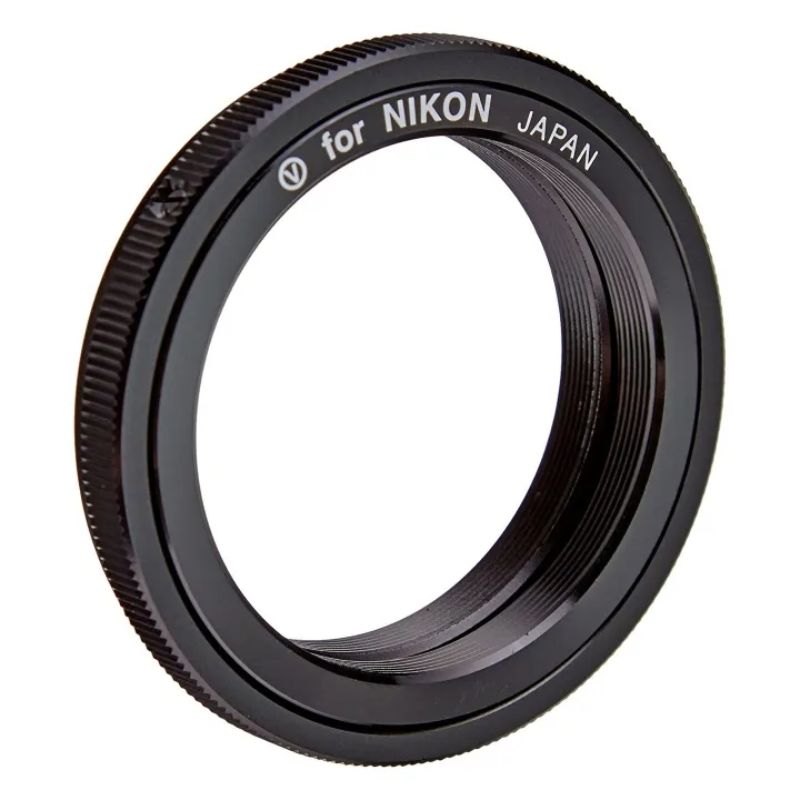

The Vixen Optics T-Ring Adapter for Nikon Digital SLR is meant for use with their various methods of mounting SLR cameras to the rear of their telescopes, but obviously they can be used for anyone who has a T-mount system lens and wants to mate it to their SLR camera without any real trouble.
Many, if not most, of the inexpensive T-mounts will get stuck to the camera or lose adhesion to the lens; with the Vixen Optics models, the superior workmanship really limits the incidence of these kind of annoyances. The T-mount lens and T-mount combination will only work on the camera with the camera in the "M" manual exposure mode. Additionally, the most advanced metering modes usually don't work with the T-mount.
Specifications
| Weight | 22g |
| Thread | Fits 42mm |
$47.50

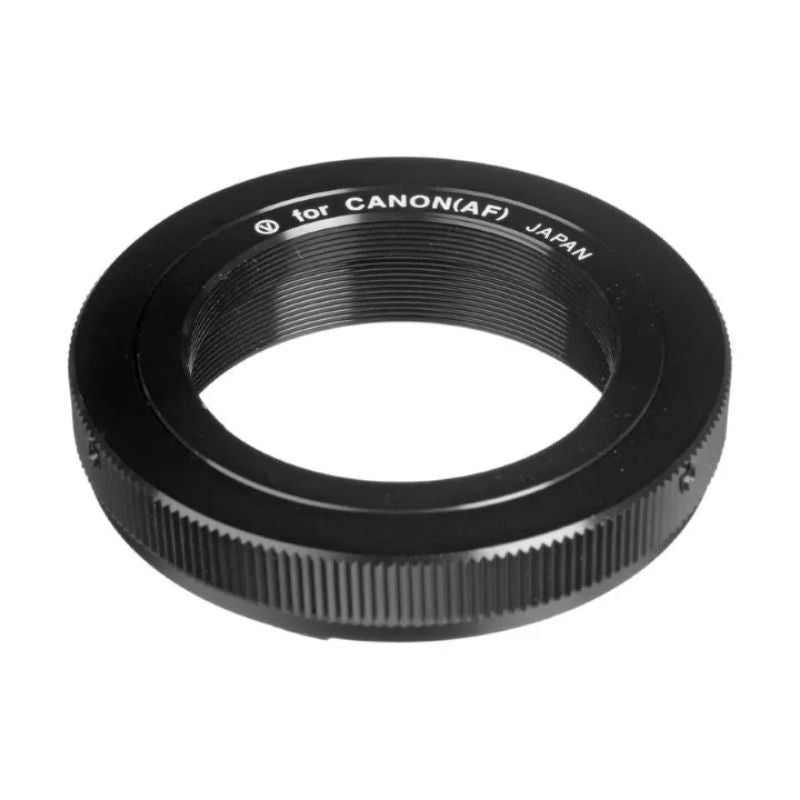

The Vixen Optics T-Ring Adapter for Canon EOS Cameras is meant for use with their various methods of mounting SLR cameras to the rear of their telescopes, but obviously they can be used for anyone who has a T-mount system lens and wants to mate it to their SLR camera without any real trouble. Many, if not most, of the inexpensive T-mounts will get stuck to the camera or lose adhesion to the lens.
With the Vixen Optics models, the superior workmanship really limits the incidence of these kind of annoyances. The T-mount lens and T-mount combination will only work on the camera with the camera in the "M" manual exposure mode. Additionally, the most advanced metering modes usually don't work with the T-mount.
Specifications
| Weight | 52g |
| Thread | Fits 42mm |
$305.00
Vixen Accessory kit for Safe Solar Observation
Safely view the Sun with this screen set.
Specifications
Sun Projection Screen Set B
-
Applicable TelescopeVixen A81M, ED81SII*A105M, AX103S, ED103S, ED115S
-
Weight980g ( Body Only 866g )
Configuration
- Sun Projection Screen
- 64mm DC Ring
- 55mm DC Ring
- 45mm DC Ring
- EA 36.4mm to 31.7mm
- 36.4mm Extension Tube
$51.50
Replacement cable for STAR BOOK TEN
A cable connecting STAR BOOK TEN controller and the corresponding Equatorial Mount.
| Size | 1.8m long |
$89.50

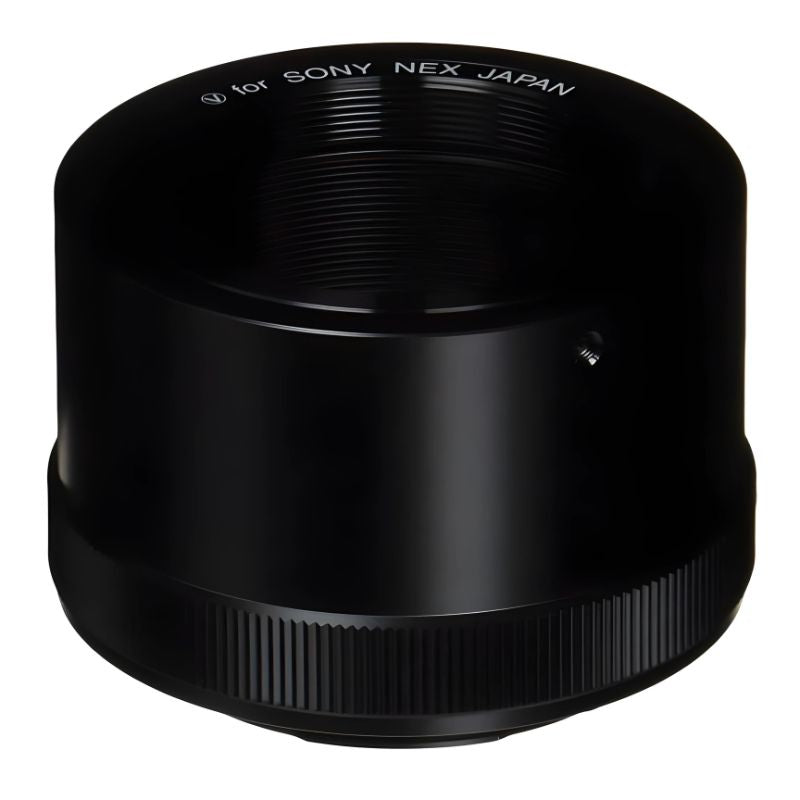

The Vixen T-Ring for Sony E Mirror less Camera is vital to ensure the film plane is square to the optical axis. This T-ring accomplishes that while minimizing any flexure as all components are crafted to Vixen's High Standards. To be used for Astrophotography in conjunction with other prime focus or eyepiece projection adapters. Vixen T-Ring for Sony E Mirror less Camera is designed for eyepiece projection or Prime Focus Photography.
Specifications
| Weight | 113g |
| Thread | Fits 42mm |
$261.00
The SLV Series of Vixen Eyepieces feature a hexagonal shaped eyepiece barrel, long 20mm eye relief and twist up click stop eyecup for adjusting to the most comfortable viewing. The SLV eyepieces feature high grade lanthanum glass and deliver remarkably clear and high contrast star images to the edge of the viewing circle. The lenses are fully multicoated for high light transmission.
Vixen Telescope Eyepiece SLV Description
-
Twist-up eyecups
SLV eyepieces have twist-up eyecups for adjusting the best eye-point. (Excluding 50mm)
-
All metal body
Due to all metal body, it has high strength.
-
Fully multi-coated
The lenses are fully multi-coated for high light transmission.
-
High grade Lanthanum glass
The SLV eyepieces with high grade Lanthanum glass, deliver remarkably clear and high contrast star images to the edge of the viewing circle.
-
Long eye-relief 20mm
The SLV Eyepiece features comfortable long 20mm eye-relief. Therefore eye does not get tired even if observation for a long time, and easy to see the whole field of view even with glasses on.
$54.50

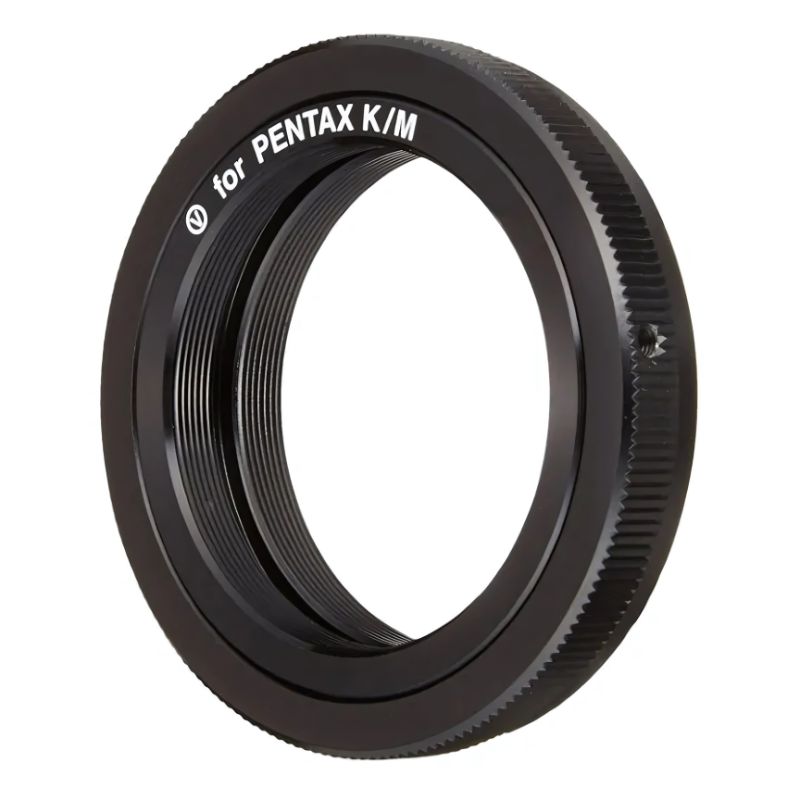

The Vixen Optics T Ring Adapter for Pentax K Cameras is especially designed for eyepiece projection or prime focus photography. A high quality T-Ring vital to ensure the film plane that is square to the optical axis. This T rings accomplish that while minimizing any flexure. Also Vixen Optics T Rings can be used for astrophotography in conjunction with other prime focus or eyepiece projection adapters.
The T Ring is designed to be used for Astrophotography in conjunction with other prime focus or eyepiece projection adapters.
Specifications
| Weight | 36g |
| Thread | Fits 42mm |
$95.00
The Vixen Optics NPL 8mm Plossl Eyepiece is a fully multicoated 1.25" telescope eyepiece that transmits bright images with faithful colour reproduction and a wide 50 degree viewing angle. The Plossl optical design includes four elements in two groups, rendering images with minimal geometric distortion and internal reflection. This eyepiece is ideal for planetary and deep sky imaging with a wide range of optical tubes.
Specification
| Focal Length | 8mm |
| Apparent FOV | 50° |
| Eye relief | 4.5mm |
| Weight | 79 g |
$578.00
The Vixen LVW Eyepiece is an exceptional premium telescope eyepiece boasting unique 5 group 8 element design. Constructed using lanthanum glass for minimised chromatic aberration. Fully multi-coated lens with a wide 65° Apparent field of view, and 20mm eye relief for comfortable viewing. The wide apparent FOV of 65 degree is far superior to standard Plossl eyepieces, offering the ability to engage with a brighter and clearer backdrop of the universe.
- Fully Multi-coated.
- Sharp and clear images of Stars.
- Fits 2" telescope eyepiece holders
- Low-Dispersion Lanthanum Glass
- Low-Power 42mm Focal Length
- Wide 65° Apparent Field of View
- Large 2" Nose Piece
- Long 20mm Eye Relief
- Fold-Down Rubber Eyecup
Specifications
| Push-fit Size | 42mm |
| Apparent FOV | 65 degrees |
| Eye Relief | 20mm |
| Weight | 567g |
$210.00
The optical path can be switched easily with the changeover knob of the Flip Mirror system, allowing swift transitions from star watching to a tronomical photography. There is no change of the focus point even when switching the optical path. A T-ring attachment thread is provided for direct focus photography.
Specifications
| Dimensions(WxHxD) | 70 mm x 122mm x 139mm |
| Weight | 300 g |
- Inserts in 2" Focusers
- Accepts 1.25" Eyepieces
- Accepts T-Mounts
$34.00
A long flexible type slow motion handle. It is also recommended for children who can not reach easily with handles attached to the PORTA II. It is for the PORTA II and PORTA altazimuth mounts.
Specifications
| Length | 300mm |
| Compatible mounts | PORTA II, PORTA, Mini PORTA mounts |
$157.00
Vixen's Erect Image Adapter is designed to fit a 1.25" focuser. This straight through adapter will re-invert and flip the image so it will appear fully corrected. You will see images with the right side up and read right correct. This Image Adapter is a must have for those terrestrial viewers. Usable on both reflectors and refractors. Coated Optics
Specifications
| Dimensions(WxH) | 39 x 167mm |
| Weight | 160 g |
$310.00
The new standard of outdoor roof prism binoculars.
Wide angle view suited for sporting events, concerts or bird watching. Get the best views with the built in field flattener lens in the eyepiece for sharp images throughout the field of view.
PFM coating
The PFM stands for Perfect Fully Multi-coating that minimize the loss of light transmission resulting in bright and sharp images.
Long eye-relief
The eyepiece has eye relief of 15mm or longer. It reduces eyestrain during long observing sessions and offers eyeglass wearers comfortable viewing.
Water proof
The product is designed to prevent moisture or water from entering the binoculars or spotting scope. These products are suitable for use outdoors.
Roof prism
The optics are designed in a straight line which results in compact binoculars.
For tripod
Tripod adaptable with an optional stay on case(item #62501)
Rubber coated body
The rugged rubber coated body makes these binoculars a great travel companion.
| Specification | Value |
|---|---|
| Magnification | 10× |
| Objective lens diameter | 25mm |
| Coating | PFM coating |
| Angular field of view | 6.0° |
| Apparent FOV | 60.0° |
| FOV at 1000m | 105m |
| Exit pupil | 2.5mm |
| Brightness | 6.3 |
| Eye relief | 15.0mm |
| Interpupillary distance | 57mm to 75mm |
| Size | 10.9 × 11.9 × 4.0 cm |
| Weight | 360g |
Accessories
- soft case
- neck strap
- lens cover(objyectibe and eyepiece)
$345.00
Waterproof design
Since it is a full-scale waterproof design, it can be used with confidence even in a sudden rain. ※The photograph is an image.
High eye point design
The eye relief is 17mm and the high eye point design makes it easy to look into and it provides enough visibility to the surroundings even for those who wear glasses.
Excellent body exterior
Polymer elastomer material is used for the exterior. It fits comfortably in the hand and has excellent shock resistance.
Twist-up view with click mechanism
Uses a twist-up look with a click mechanism. It is very convenient because it can be expanded and contracted with one touch.
Porro prism
By adopting a Porro prism with excellent cost performance, you can get a clear view while ensuring a high degree of design freedom.
PFM coat
Uses PFM coat (Perfect Fully Multi Coat). Multi-coating is applied to the entire surface of the prism and lens (objective and eyepiece), resulting in extremely excellent contrast.
Can be mounted on a tripod
Binoculars can be fixed to a tripod by using Vino Holder H (sold separately) or Vino Holder MH (sold separately). We realize stable observation.
5 year warranty
If the product is used correctly according to the instruction manual and a malfunction occurs within 5 years from the date of purchase, we will repair the product free of charge.
With High Quality extra-low dispersion (ED) Glass this monocular will give clear shap views. The ED Monocular has high reflective and phase coating on the lens. Enjoy high resolution images and crystal clear, amazing views.
Roof prism
The optics are designed in a straight line which results in a compact monocular.
Japanese made with ED Glass
Crystal Clear images through ED Glass. This monocular will give clear sharp views.
Flat Multi-Coating + Phase Coating + Ultra High Reflectivity Dielectric Coating + Hydrophobic Coating
The cutting edge coatings and manufacturing materials deliver the ultimate high-definition and true-to-life image.
The extended 17.5mm long eye-relief
The extended 17.5mm long eye-relief for eyeglass wearer. And short close focus this monocular is great for all views.
Specifcations
| Magnification | 6x |
| Objective lens diameter | 21mm |
| Prism material | BK4 / SK15 |
| Angular field of view | 8.7° |
| Apparent FOV | 52.2° |
| FOV at 1000m | 152m |
| Exit pupil | 3.5mm |
| Brightness | 12.3 |
| Eye relief | 17.5mm |
| Close focus | 0.6m |
| Size | 3.5×3.5×10.2cm |
| Weight | 147g |
In The Box
- Vixen ARTES HR 6x21 ED Monocular
- Hard case
- Neck strap
$399.00
The definitive compact binoculars that can be used not only for watching sports, but also for trekking and traveling.
Lightweight, compact and highly portable! Binoculars that are waterproof and can be used in fields such as trekking. By applying multi-coating to the entire surface of the lens and adding two types of coating (phase coating and high-reflection coating) to the prism, transmittance is improved by approximately 10% compared to the previous series. Achieve a brighter field of view.
$2,625.00
For observation of faint nebulae and star clusters in a wide and bright field of view
The 130mm aperture Newtonian reflector with excellent light gathering power is ideal for observation of faint nebulae and star clusters, particularly for beginners who wish to start astronomical life with a large aperture excellent in light gathering power. It is equipped with a motor for tracking.
AP-SM Equatorial mount
The Advanced Polaris (AP) mount is ideal for beginners learning to use an equatorial mount, as well as experienced observers looking for a simple, grab-and-go setup. It securely supports your telescope's optical tube, providing a stable and comfortable observing experience. Thanks to its friction control system, the mount can be quickly and smoothly moved to your target object. A wide range of optional accessories is available to customize the AP mount to suit your observing needs..
R.A. Motor module and STAR BOOK ONE Set
The AP-SM equatorial mount comes equipped with the RA motor module and the STAR BOOK ONE set, which includes the main motor for celestial tracking and the STAR BOOK ONE controller. This set forms the core of the AP mount system. You can customize and expand your setup by adding additional modules to the RA motor module and STAR BOOK ONE base.
Stylish design
The new stylish and compact design helps break the stereotype of astronomical telescopes being bulky and difficult to use. Weighing just 3.6 kg (excluding the counterweight), the mount is lightweight and easy to handle—even with full-scale astronomical telescopes. The power supply, using four AA batteries, is built into the body, and the use of internal electrical contacts eliminates the need for external wiring that was previously exposed.
Friction control system
Simply point the target objects by moving the optical tube by hands. The friction control system allows you to manually point the telescope at the object without using knobs and clamps.
Simple polar alignment
The optional polar meter can be attached on the equatorial mount for simple polar alignment. Even beginners can quickly align polar axis. For precision alignment, the polar axis scope is usually used, but the polar meter can outperforms especially where Polaris is not visible.
Polar alignment scope PF-L
The PF-L polar alignment scope features a three-star alignment system and a built-in dark field illuminator, allowing you to perform polar alignment while looking directly through the scope. The illumination automatically turns off to conserve power.
To complement the PF-L, we provide a free app called "PFL Assist" for smartphones and tablets. This app supports polar alignment by visually indicating the correct star positions within the displayed constellation.
Power supply system focusing on mobility and comfort
The motor module operates with 4 pieces of the AA batteries which are commercially available anywhere easily, not only corresponding to the alkaline battery but also economical rechargeable batteries (Ni-MH, Ni-Cd). For long term use, a commercially available USB external power supply such as USB mobile battery or USB AC adapter can be used connecting to the provided USB Micro-B terminal.
R130Sf Newton reflector
The 130mm aperture newton reflector which is excellent in light gathering power is ideal for observation of faint nebulae and star clusters in a wide and bright field of view.
APP-TL130 tripod
The compact APP-TL130 tripod is adjustable from 60 cm to 130 cm, combining the portability of a photographic tripod with the strength of an astronomical telescope tripod. The tripod’s feet can be switched between rubber pads and metal spikes, preventing damage to floors when used indoors.
Optical tube
| Primary mirror | 130mm parabolic mirror, multicoated |
| Focal length | 650mm (f/5) |
| Resolving power / Limiting magnitude | 0.89 arc sec. / 12.3 |
| Light gathering power | 345x unaided eye |
| Dimensions / Weight | L: 575mm x OD 160mm, 5.3kg (Body 4.0kg) |
| Finder scope | 6x30mm, 7°actual field of view |
Drawtube
| Visual back | 43mm, 42mm for T-ring, 31.7mm push-fit |
| Eyepiece (Dia. 31.7mm) | PL20mm (33x), PL6.3mm (103x) |
Tripod
| Material, Type | Aluminium 3-section leg |
| Dimensions / Weight | L:570⇔1,296mm, H:526⇔1,159mm, closed 598.4mm, Radius: 350⇔710mm, 3.0kg |
Others
| Accessories | Counterweight 1kg x 1 pc., 1.9kg x 1 pc. |
| Photography | Eyepiece projection, prime-focus, afocal imaging. |
| Solar observation | Not possible |
| Total weight | 15.2kg without battery and eyepiece |
Included:
- Optical tube assembly
- AP-SM equatorial mount
- Eyepiece
- APP-TL130 tripod
$1,575.00
The easy-to-maintain refractor is an excellent choice for beginners though to experts.
Vixen achromatic objective lens delivers clear images with less colour fringe.
Specifications
| Objective lens, effective aperture | 105mm achromatic, multicoated |
| Focal length | 1000mm |
| Focal ratio | F9.5 |
| Resolving power | 1.1arc seconds |
| Limiting magnitude | 11.9 |
| Light gathering power | 225×unaided eye |
| Focusing mechanism | Rack-and-pinion |
| Finder scope | XY Red dot finder (1×aiming device) |
| Adapter thread / Visual back | 60mm and 42mm for T-ring / 50.8mm and 31.7mm push fit with flip mirror diagonal |
| Accessories | Tube rings, Dovetail slide bar |
| Photography | Usable with Prime focus, Eyepiece projection and Afocal imaging |
| Solar observation | Available with Sun projection screen set B |
| Dimensions / weight | 1010mm dia. and 115mm long / 4.8kg (Net 3.8kg) |
$2,310.00
A wonderful tool for shooting nightscape images with a DSLR camera
What are you capturing tonight? The sky above is full of fabulous deep-sky objects, ready to photograph with your DSRL or mirrorless camera: nebula, star clusters constellations and of course, the dense dust and star clouds of our home galaxy, the Milky Way.
This compact AP photo guider is an equatorial mount designed capture widefield images with excellent tracking accuracy. It comes equipped STAR BOOK ONE controller to ensure high precision tracking.
Features
-
Excellent tracking accuracy
The AP Photoguider allows you to take pinpoint photos of stars and constellation without guiding corrections for the length of several minutes. -
Lightweight
The AP Photoguider includes the sturdy but lightweight APP-TL130 tripod, with the complete system weighing only about 5.4kg, convenient for transporting to a dark location away from light pollution. -
Shooting
Attach camera mount on the dovetail slide bar PG first and then camera set for shooting. You can start shooting immediately if you mount lightweight camera. In case of mounting heavy camera, attach a supplementary counterweight bar as well as counterweight 1kg for stable conditions. -
Polar alignment scope
The AP Photoguider is equipped with the polar alignment scope where polar axis is aligned at accuracy within 3 arc sec, using auto power off for illumination of the dark field illuminator. -
Accessory shoe
The AP Photoguider is provided with an accessory shoe. You can attach an optional poler meter to be able to align where Polaris is not visible.
Mount Specifications
Main Body
| Specification | Details |
|---|---|
| Slow motion control | Wheel and worm gears full circle micro movement by electricity |
| Quick slewing motion | Friction control system |
| Wheel gear | 73.5mm in dia., 144-tooth |
| Worm gear / R.A. gear | Dia. 11mm, brass / Dia. 59mm aluminium |
| Bearings | Ball-bearing x 4pcs (RA motor module, AP Polar axis body unit x 2pcs each) |
| Azimuth adjustment | ±6.5°fine adjustment with twin adjustment screws knobs, 1.4°/rotation |
| Altitude adjustment | 0 to 65°with tangent screw with handle, 1.9°per rotation |
| Polar alignment scope | 6x20mm, 8°actual field of view, auto power off (8 step adjustable). 3 alignment stars system. |
| Drive / Tracking | Electric drive with pulse motor / High accuracy tracking with STAR BOOK ONE controller. |
| Max. loading capacity | 6kg (150kg-cm torque load) |
| Cable connecting terminal | D-SUB9PIN male |
| Power contact | USB Micro-B terminal Male |
| Power supply | USB Micro B |
| Compatible power supply | USB external power supply |
| Power consumption | DC5V 0.2-0.5A (1.0-2.5W) |
| Weight | 2.4kg |
| Total weight | 5.4kg |
| Optional accessories | Counterweight bar for GP Photoguider, Counterweight 1kg, Polar meter |
Tripod
| Specification | Details |
|---|---|
| Material, type | Aluminum 3-section leg |
| Dimensions / Weight | L:570⇔1,296mm, H:526⇔1,159mm, closed 598.4mm, Radius: 350⇔710mm, 3.0kg |
Configuration
- AP polar axis body unit
- R.A. Motor module and STAR BOOK ONE set
- PG mount head set
- Polar alignment scope PF-L
$395.00
At a Glance
- Wireless Control for Compatible Mounts
- Operate with Star Book Wireless App
- Tap Object on Screen to Slew & Track
- Precise Slewing with Alignment
- Data on Celestial Objects, Planets, Moon
- Customizable Display
- External Autoguider Terminal
- Uses Less Power than Hand Controllers
Vixen Telescope Wireless Unit Description
-
Comfortable wireless celestial navigation
By installing the smartphone app "STAR BOOK Wireless" on your smartphone or tablet, you can use it as a controller for your equatorial mount.
In addition to controlling the astronomical telescope, you can enjoy functions such as celestial navigation comfortably without cables. -
Stree-free fast response
The possible response delay in the operation of equatorial mount, which could be a drawback in wireless connections, has been successfully suppressed to a level comparable to wired connections(*), leading to stress-free and comfortable operation. (*)
A possible operational delay depends on the einvornment of wireless LAN connection. -
Reducing power consumption
Compared to conventional controllers with LCD monitors, power consumption is reduced by up to approximately 20% for the entire equatorial mount.
You will feel be assured even during long astronomical observations. -
Inheriting the DNA of STAR BOOK TEN Controller
If you tap the celestial object you want to see on the star chart, it will be automatically slew into the field of view and tracking will start.
Following the display of the STAR BOOK TEN controller, which has been highly evaluated for its comfortable operability, even existing STAR BOOK TEN users can use it without any discomfort. -
Swipe with one finger! Comfortable operation while looking through the telescope
Operate the telescope by swiping on the app's star chart. Since there are no buttons, you simply slide your finger over the star chart to comfortably operate without taking look at the screen while looking through telescope.
-
Rich celestial data
In addition to various data on famous celestial objects that are easy to observe (Messier, NGC, IC objects), it also includes the sun, moon, planets (including dwarf planets), it supports tracking of the respective celestial objects.
-
High-precision slewing by alignment
Performing alignment* at three or more points on the stars visible during observation realizes higher slewing accuracy.
The acquired alignment data will be stored and kept even after power is turned off.
Alignment data can be deleted at your opiton. If the telescope is not moved, you can resume automatic slewing using the same settings.
*Alignment is the process of matching the position information on the celestial coordinates stored by the app with the actual position of the star (visual position). -
Display settings of celestial objects
You can customize the display of celestial body types, names, etc, intended to ensure better visibility within the limited screen of the controller.
You can also set the timing of Meridian crossover, even the target celestial object goes south during tracking and shooting avoiding unintended optical tube reversal. -
Equipped with external autoguider terminal
An autoguider terminal compatible with the SIBIG autoguider is equipped as standard.
-
Version update support by wireless LAN connection
The app supports firmware update
Specifications
-
TypeWireless connection equatorial mount controller unit
-
Applicable MountSX2, SXD2, SXD2-PFL, SXP, SXP-PFL, SXP2, AXJ(Non AXJ encoder)、AXD, AXD2
-
CPU32bit CISC Processor 120MHz
-
Connector to MountD-SUB 9PIN male
-
Autoguider Port6-pole 6-wired modular jack (for external autoguider)
-
Wi-FiUse smartphone as user interface with app "STAR BOOK Wireless"
-
Applicable App EnvironmentOS : Android ver. 6 or higher, iOS 9.0 or higher※
・Wireless LAN standards : IEEE 802.11b/g/n・Data encryption methods : WPA2-APK
※You may not be able to use it even if the conditions are met. Please be sure to check the operation of the app before using it. -
Power SupplySupplied by mount
-
Operating voltage / Current consumptionDC12V 0.1A (Max)
-
Operating Temperature0~40℃
-
Funtions, othersSupports version upgrades via wireless LAN connection
$8,695.00
At a glance
- Vixen's flagship model with outstanding performance and ease of use for visual observation and astrophotography.
- Features a five-group-five-element Astrography with a fast focal ratio.
|
Objective Design |
Five-group five-element SD Apochromat, AS coatings |
|
Effective Aperture |
90mm |
|
Focal Length (Focal Ratio) |
495mm (F5.5) |
|
Resolving Power |
1.29 arc seconds・ |
|
Limiting Magnitude |
11.5 |
|
Light Gathering Power |
165X unaided eye |
|
Image Circle |
60mmφ (Over 90% illumination at the round edge) |
|
Optical Tube Size |
115mm dia. X 600mm long (476mm long for storage) |
|
Weight |
4.3kg |
| Finderscope | Not included, 7X50mm Finder with illuminated reticle, 50mm XY Finder bracket II sold separately |
| Focusing System | Rack-and-pinion |
| Accessory Threads / Size | Threads/ 84mm (pitch 1mm), 60mm (pitch 1.0mm), 42mm for T-ringPush-fit / 60.2mm, 50.8mm, and 31.7mm |
| Eyepiece (31.7mm) | Not included, SLV series of eyepieces sold separately |
| Plates and/or Tube Rings | Not included, VSD Tube Ring 115S, Dual Slide Bar sold separately |
| Provided Accessories | VSD60.2 to 50.8 Adapter, 2mm and 1.5mm Allen wrenches |
$395.00
- Compatible with Vixen VSD90 telescope and all telescopes with an outer diameter of 115 mm.
- Can be directly attached to the SXP2/AXJ/AXD2 equatorial mount using the two M8 screws included.
- Can also be attached to Vixen standard dovetail equatorial mounts such as the SX2 equatorial mount by using a dual slide bar or a general-purpose slide bar.
$7,560.00
For both planetary and deep sky observing and photographic applications.
Vixen's original Catadioptric design, consisting of two high reflectivity dielectric mirrors and a unique double meniscus lens unit in front of the secondary mirror, virtually eliminates both spherical aberration and field curvature excellently and delivers high quality of images. With the large 260mm aperture, the VMC260L is a true all purpose telescope in your observing sessions.
The VMC features a combination of a miniscus lens unit in front of the secondary mirror and high-precision spherical mirrors that are shaped with extreme accuracy. Spherical aberration and curvature of field are corrected to a high level of optical performance for clear and sharp images. With its 260mm aperture dielectric coated mirror, the VMC260L collects enough light for serious visual and photographic applications and for both planetary and seep sky observing.
Specifications
Optical Tube
| Specification | Details |
|---|---|
| Primary mirror | 260mm effective aperture, precision spherical mirror, multicoated |
| Focal length (Focal ratio) | 3,000mm (F11.5) |
| Resolving power / Limiting magnitude | 0.45 arc seconds / 13.8 |
| Light gathering power | 1380× unaided eye |
| Dimensions / Weight | 304mm dia. and 680mm long (720mm incl. protruded focus knob) / 12.1kg (Net 10kg) |
| Finder scope | 7×50mm with dark-field illuminated reticle, 7 degrees field of view |
Focuser
| Specification | Details |
|---|---|
| Adapter thread / Visual back | 60mm and 42mm for T-ring / 50.8mm and 31.7mm push fit with flip mirror diagonal |
Other
| Specification | Details |
|---|---|
| Accessories | Dovetail attachment rail, Metal carry handle, Saddle plate |
| Photography | Usable with Prime focus, Eyepiece projection and Afocal imaging |
| Solar observation | Not available |
$6,930.00
For both planetary and deep sky observing and photographic applications.
Vixen's original Catadioptric design, consisting of two high reflectivity dielectric mirrors and a unique double menisus lens unit in front of the seconday mirror, virtually eliminates both spherical aberration and field curvature excellently and delivers high quality of images. With the large 260mm aperture, the VMC260L is a true all purpose telescope in your observing sessions.
Optical Tube
| Specification | Details |
|---|---|
| Primary Mirror | 260mm effective aperture, precision spherical mirror, multicoated |
| Focal Length (Focal Ratio) | 3,000mm (F11.5) |
| Resolving Power / Limiting Magnitude | 0.45 arc seconds / 13.8 |
| Light Gathering Power | 1380× unaided eye |
| Dimensions / Weight | 304mm diameter × 680mm length (720mm including protruding focus knob) / 12.1kg (Net 10kg) |
| Finder Scope | 7×50mm with dark-field illuminated reticle, 7° field of view |
Adapter
| Specification | Details |
|---|---|
| Adapter Thread / Visual Back | 60mm and 42mm for T-ring / 50.8mm and 31.7mm push fit with flip mirror diagonal |
Others
| Specification | Details |
|---|---|
| Accessories | Dovetail attachment rail, Metal carry handle, Saddle plate |
| Photography | Usable with Prime focus, Eyepiece projection, and Afocal imaging |
| Solar Observation | Not available |
Configuration
- AXD-VMC260L
- AXD-VMC260L-P
Showing 30/121
Explore Related Collections
- Choosing a selection results in a full page refresh.
- Opens in a new window.
