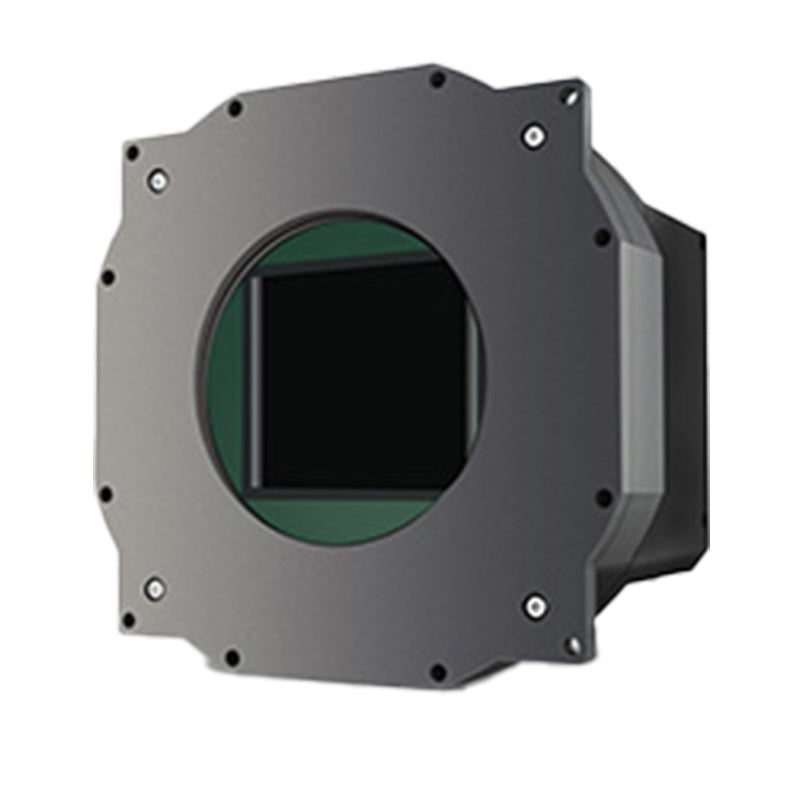

The Kepler KL6060 BI camera features a back-illuminated sensor, offering unparalleled sensitivity for even the most challenging low-light environments. With its large field of view (FOV), low-noise performance, and high frame rates, the KL6060 BI is ideal for Space Domain Awareness and other critical low-light imaging applications, where both reliability and performance are paramount.
| Sensor | GSENSE6060 BI |
| Diagonal Size (mm) | 83.9mm |
| Resolution | 6144 x 6144 |
| Pixel Size | 10um |
| Bit depth | 16-bit |
| Full Well | 95ke- |
| Read Noise | 3.0 e- |
| Dark current | 0.1 EPS @ -20c |
| Shutter | Rolling |
| Peak QE | 95% |
| Interface | USB 3 QSFP |
| Frame Rate | 11 FPS (QSFP) |
Optional Accessories
- Sensor Grade Selection
- Liquid Cooling Adapters
- Anti-Dew Technology
- Camera Window Type
- Mechanical Shutter
- GPS Time Stamp
Quantum Efficiency
Quantum efficiency (QE) measures how effectively a detector converts incoming photons into electrons. In our graphs, QE is expressed as a percentage. A sensor’s QE typically varies based on its architecture, coatings, and materials. High QE remains a crucial consideration for applications such as astronomy, space debris imaging, and life science research.
