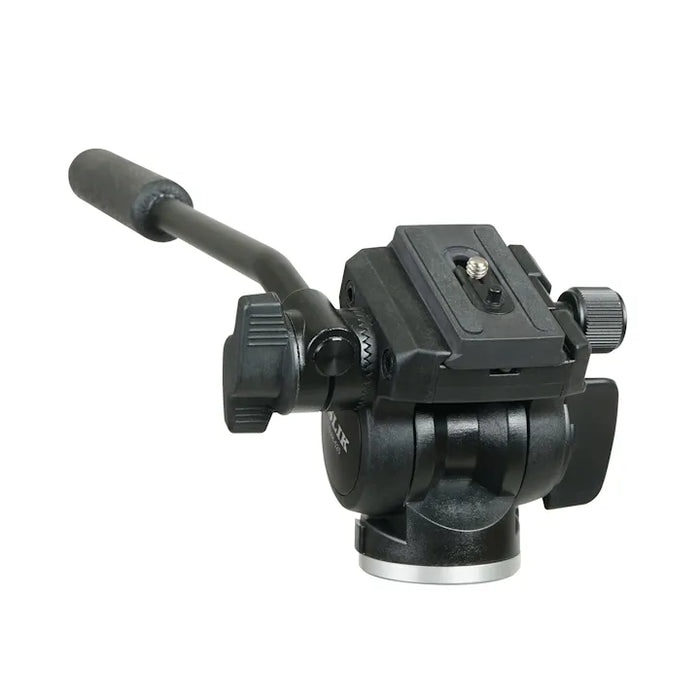

At a glance
- Fluid Video Head
- 4kg (8.8 lb) Load Capacity
- Arca-Compatible Quick Release Plate
- Flat Base with 3/8"-16 Thread
- 3/8"-16 to 1/4"-20 Bushing Adapter
- 360° Pan, Pan Handle
- Spring-Loaded Tilt Counterbalance
Arca Compatible Platform
SVH-520 has "viselike" clamping style Arca-type quick release platform that accommodates with any Arca style quick release plate, L-bracket or backpack "clip" design plate.
Reversible video boss plate
Most of video camera have a1/4" set screw, as well as a video boss hole to prevent a camera side sliding. The reversible Video Boss Plate can be easily removed and flipped over when attaching a scopes or photographic cameras that does not have a hole.
Curved Pan Handle
In order to delicately panning and tilting the video head, it is important that the pan bar is easy to grip. A slightly curved pan bar allows the videographer to place the grip in the most comfortable position.
Specifications
Type of Bubble Level: |
Single bubble level |
Camera mounting screw: |
U1/4 (with reversible video boss plate) |
Tripod mounting screw: |
U1/4 (with U3/8 screw adapter) |
Base diameter: |
50mm |
Size of camera platform: |
38 x 60mm |
Height: |
100mm |
Weight: |
565g |
Load capacity: |
4 kgs |
Quick Release: |
Q.R.S. 6502 |
