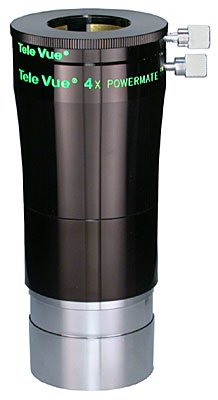

Tele Vue Powermate 4x

SKU: PMT-4201
Barcode: 759270088385

$740.00

Available to order
Delivery time: Typically 3 months from order

Delivered to anywhere is Australia and New Zealand.
Orders placed before 2 PM are usually shipped the same day.

Tele Vue Powermate 4x

$740.00

$740.00

Image alt

Same day shipping

If you order before 2pm we will ship your items same day.

Image alt

Expert aftersales support

We fully support our products!

Image alt

Minimum 2-Year Warranty.

+ extended manufacturer warranties

Image alt

Aussie Owned & Stocked

Our store is Australian owned and stocked.

WANT TO KNOW MORE ABOUT THIS PRODUCT?

Let Gemini, ChatGPT or Claude help you. Click a button and ask away.

A 4× step up for a 2-inch optical train

4×Nominal factor

What the 4× Powermate does at the eyepiece

A 24 mm eyepiece giving 50× in a 1,200 mm telescope gives about 200× at the nominal 4× factor. Use a 1.25-inch reducer to fit smaller eyepieces.

2 inBarrel size

Match your telescope and eyepiece

The barrel seats in a 2-inch focuser or holder. A 1.25-inch reducer accepts smaller eyepieces.

4Lens elements

How the optics increase power

The four elements form two doublets. The second doublet corrects the beam leaving the first to keep the eyepiece’s exit pupil near its intended position.

Compare Tele Vue Powermates

2× Powermate
  • Nominal factor2×
  • Barrel2 in
  • From 60×120×
2.5× Powermate
  • Nominal factor2.5×
  • Barrel1.25 in
  • From 60×150×
4× Powermate Selected model
  • Nominal factor4×
  • Barrel2 in
  • From 60×240×
5× Powermate
  • Nominal factor5×
  • Barrel1.25 in
  • From 60×300×

What it fits

Telescope holder
2-inch
Eyepieces
2-inch with 1.25-inch reducer
Filters
48 mm (2-inch) filters
Imaging and focus
For imaging, the 4× curve rises gradually with sensor spacing. Check the chart when choosing extensions, and check telescope balance when pairing it with heavy eyepieces. Tele Vue Powermate imaging chart
Optional camera adapter
PTR-4201. Use the matching Tele Vue adapter and the T-ring for your camera.
Paracorr setup
Place the Powermate in the 2-inch focuser, then put the Paracorr into the Powermate.
Magnification
Use the Bintel FOV Calculator to check visual magnification and field of view.

Specifications

Optics

Nominal amplification
4×
Optical design
4 elements in two doublets
Coatings
Fully multicoated

Fit

Telescope-side barrel
2 inches
Filter fit
48 mm (2-inch) filters
Eyepiece holder
2-inch with 1.25-inch reducer
Eyepiece retention
Brass clamp ring
Manufacturer model code
PMT-4201
Optional imaging adapter
PTR-4201
